Vehicle Exploded View - VESPA VESPA 946 125 E5+ 13° Anniversario 2026 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

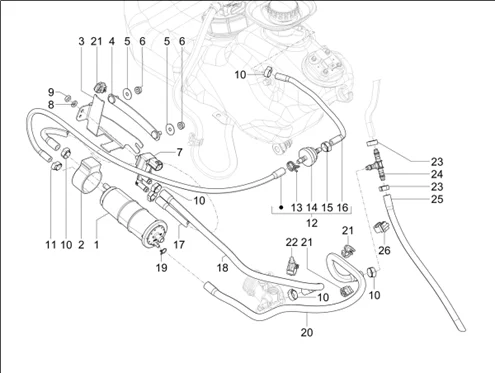

Châssis - parties plastiques - carrosseries : 02.61 SYSTÈME ANTI-ÉVAPORATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1349/Vespa_946_125_E5_13_Anniversario_2026_EMEA_02.61.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/7/3/3/img/174733.jpg)
1 |
1B002848 - CANISTER More informationQuantity required : 1 |
||||||
2 |
1B002849 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
3 |
1B002849 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
4 |
1B000585 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/6/img/65356.jpg)
5 |
013092 - RONDELLE S01309200 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/1/img/65941.jpg)
6 |
219277 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/3/0/6/img/174306.jpg)
7 |
1B008603 - AIR VALVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
8 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
9 |
020206 - ECROU S02020600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/5/img/72875.jpg)
10 |
CM001914 - COLLIER More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
11 |
CM001901 - COLLIER More informationQuantity required : 1 |
||||||
|
12 |
CM001901 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/2/img/72892.jpg)
13 |
CM002905 - COLLIER EX 194011 More informationQuantity required : 1 |
||||||
|
14 |
CM292102 - SOUPAPE PRESSION More informationQuantity required : 1 |
||||||
|
15 |
CM001914 - COLLIER More informationQuantity required : 1 |
||||||
|
16 |
CM183314 - TUYAU SAE J30R7/R14T2 1/4 More informationQuantity required : 1 |
||||||
|
17 |
|
||||||
|
18 |
CM183314 - TUYAU SAE J30R7/R14T2 1/4 More informationQuantity required : 1 |
||||||
|
19 |
CM283701 - COLLIER More informationQuantity required : 1 |
||||||
|
20 |
CM283701 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
21 |
CM013203 - RESSORT More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/0/img/72910.jpg)
22 |
CM006910 - RESSORT More informationQuantity required : 1 |
||||||
|
23 |
CM001914 - COLLIER More informationQuantity required : 2 |
||||||
|
24 |
2B002254 - RACCORD More informationQuantity required : 1 |
||||||
|
25 |
CM001444 - TUYAU RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.jpg)
26 |
CM013201 - RESSORT More informationQuantity required : 1 |
