Vehicle Exploded View - MOTO-GUZZI V11 1100 V 11 Le Mans-Sport Naked 1100 2001-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

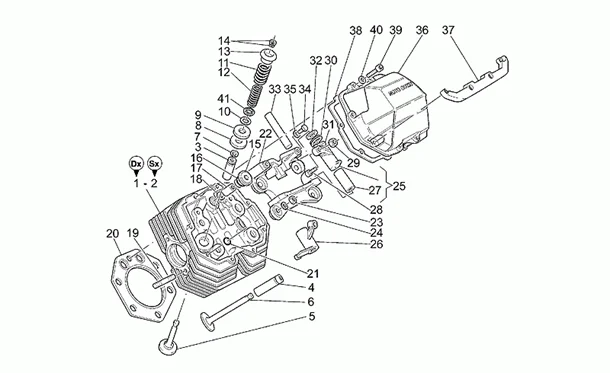

Moteur : 34.49 CULASSE ET SOUPAPES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1237/V_11_Le_Mans-Sport_Naked_1100_2001-2002_34.49.png)
1 |
CYLINDER HEAD- "PIAGGIO GENUINE PART" MOTO-GUZZI V11 -GU01022130- More informationQuantity required : 1 |
||||||
|
2 |
GU01022230 - TESTA CILINDRO SX CPL. More informationQuantity required : 1 |
||||||
|
3 |
GU13036801 - GUIDE-SOUPAPE PURGE More informationQuantity required : 2 |
||||||
|
4 |
GU14036860 - GUIDE-SOUPAPE ASPIR. More informationQuantity required : 2 |
||||||
|
5 |
GU37036105 - SOUPAPE D'ECHAPPEMENT More informationQuantity required : 2 |
||||||
|
6 |
GU37036005 - SOUPAPE D'ADMISSION More informationQuantity required : 2 |
||||||
|
7 |
GU90353016 - ANNEAU ELASTIQUE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/2/img/129162.jpg)
8 |
GU13037200 - RONDELLE More informationQuantity required : 4 |
||||||
|
9 |
GU14037300 - RONDELLE More informationQuantity required : 10 |
||||||
|
10 |
GU01038730 - ROSETTA PER PIATTELLO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/0/9/img/131809.jpg)
11 |
VALVE SPRING (EXTERNAL) "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 BREVA, NORGE, SPORT, 940 BELLAGIO -GU37037405- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/1/0/img/131810.jpg)
12 |
VALVE SPRING (INTERNAL) "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 BREVA, NORGE, SPORT, 940 BELLAGIO -GU37037605- More informationQuantity required : 4 |
||||||
|
13 |
GU37038005 - COUPELLE SUPERIEUR More informationQuantity required : 4 |
||||||
|
14 |
GU12038100 - DEMI-CLAVETTE SOUPAPE More informationQuantity required : 8 |
||||||
|
15 |
OIL PLUG "PIAGGIO GENUINE PART" COMMON FOR ALL MOTO-GUZZI RANGE -GU12022600- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/4/img/132224.jpg)
16 |
O'RING GASKET (20,24X2,62) FOR CLUTCH SHAFT Ø20,24X2,62 "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -GU90706203- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/5/7/img/129157.jpg)
17 |
NUT - FOR STEERING COLUMN/OR CRANKCASE "PIAGGIO GENUINE PART" PIAGGIO COMMON FOR MOTO-GUZZI RANGE -GU13021900- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/3/img/132753.jpg)
18 |
GU95129180 - RONDELLE 10,5X18X0,8 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/8/1/7/img/132817.jpg)
19 |
GU96508040 - VIS SANS TETE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/7/8/img/130478.jpg)
20 |
CYLINDER HEAD GASKET- "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, SPORT, QUOTA, V11 -GU30022060- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/8/3/7/img/125837.jpg)
21 |
ROCKER AXLE O'RING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI (2 VALVES ENGINE) -GU90706094- More informationQuantity required : 8 |
||||||
|
22 |
GU14034865 - SUPPORT CULBUTEUR More informationQuantity required : 2 |
||||||
|
23 |
GU92603010 - ECROU M10X1,5 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/8/0/img/129180.jpg)
24 |
GU14018400 - RONDELLE 10,5X21X1 More informationQuantity required : 10 |
||||||
|
25 |
GU14030201 - CULBUTEUR D.COMPLET More informationQuantity required : 2 |
||||||
|
26 |
GU14030401 - CULBUTEUR G.COMPLET More informationQuantity required : 2 |
||||||
|
27 |
GU91111511 - BAGUE 15X18X43 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/1/1/img/129311.jpg)
28 |
GU17034050 - VIS EMBRAYAGE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/8/7/img/129087.jpg)
29 |
NUT - FOR ADJUSTING VALVES COMMON TO ALL THE RANGE MOTO-GUZZI - FOR 2 VALVES ENGINE -GU10034100- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/4/7/img/132647.jpg)
30 |
ROCKER SPRING "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -GU94322215- More informationQuantity required : 4 |
||||||
|
31 |
GU90118152 - RONDELLE More informationQuantity required : 8 |
||||||
|
32 |
GU10032700 - RONDELLE More informationQuantity required : 4 |
||||||
|
33 |
GU12031800 - AXE CULBUTEUR More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
34 |
GU98084316 - VIS M6X16 More informationQuantity required : 4 |
||||||
|
35 |
GU95120065 - RONDELLE 6,5X11X2 More informationQuantity required : 4 |
||||||
|
36 |
GU01023560 - COUVERCLE TETE DROIT/GAUC.GRIS More informationQuantity required : 2 |
||||||
|
37 |
GU039410009 - PROTECTION BOUGIE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/4/6/9/2/img/124692.jpg)
38 |
GASKET - FOR CYLINDER HEAD COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI 2 SOUPAPES PAR CYLINDRE -GU14023760- More informationQuantity required : 2 |
||||||
|
39 |
GU98682325 - VIS TCEI M6X25 More informationQuantity required : 16 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
40 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 16 |
||||||
|
41 |
GU01037030 - PIATTELLO INF. More informationQuantity required : 2 |
