Vehicle Exploded View - MOTO-GUZZI V11 1100 V 11 Le Mans-Sport Naked 1100 2001-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

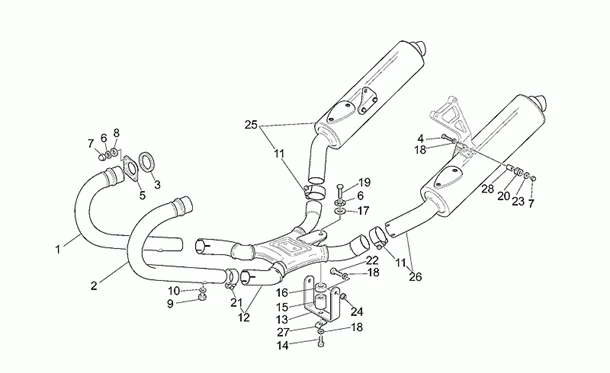

Chassis : 33.42 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1237/V_11_Le_Mans-Sport_Naked_1100_2001-2002_33.42.png)
1 |
GU01120932 - TUBO SCARICO DX More informationQuantity required : 1 |
||||||
|
2 |
GU01120933 - TUBO SCARICO SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/0/1/img/125501.jpg)
3 |
EXHAUST GASKET- ON HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU90718370- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/6/8/img/133068.jpg)
4 |
GU98370835 - VIS More informationQuantity required : 2 |
||||||
|
5 |
GU01121030 - FLANGIA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
6 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/0/6/img/69806.jpg)
7 |
860651 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/6/img/132666.JPG)
8 |
GU95005308 - RONDELLE More informationQuantity required : 4 |
||||||
|
9 |
GU98110007 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/7/4/img/130574.JPG)
10 |
GU30109330 - JOINT More informationQuantity required : 2 |
||||||
|
11 |
GU01126930 - FASCETTA More informationQuantity required : 2 |
||||||
|
12 |
GU01123931 - CAMERA ESPANSIONE More informationQuantity required : 1 |
||||||
|
13 |
GU01123830 - CAVALLOTTO More informationQuantity required : 1 |
||||||
|
14 |
GU98084412 - VIS More informationQuantity required : 1 |
||||||
|
15 |
GU93233030 - SILENTBLOC More informationQuantity required : 1 |
||||||
|
16 |
GU30126700 - ENTRETOISE INFERIEUR More informationQuantity required : 1 |
||||||
|
17 |
GU30126701 - ENTRETOISE SUPERIEUR More informationQuantity required : 1 |
||||||
|
18 |
GU95100239 - RONDELLE More informationQuantity required : 3 |
||||||
|
19 |
GU98084430 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/0/6/img/129206.jpg)
20 |
GU14103400 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
21 |
GU01123430 - FASCETTA More informationQuantity required : 2 |
||||||
|
22 |
GU98084422 - VIS BRIDE M8X22 More informationQuantity required : 2 |
||||||
|
23 |
GU95005312 - RONDELLE 8,5X24X2 More informationQuantity required : 2 |
||||||
|
24 |
GU92650108 - ECROU More informationQuantity required : 2 |
||||||
|
25 |
GU01123060 - SILENZIATORE DX More informationQuantity required : 1 |
||||||
|
25 |
GU01123042 - SILENZIATORE DX CARB. More informationQuantity required : 1 |
||||||
|
26 |
GU01122942 - SILENZIATORE SX CARB. More informationQuantity required : 1 |
||||||
|
26 |
GU01122960 - SILENCIEUX G More informationQuantity required : 1 |
||||||
|
27 |
GU95187008 - PLAQUETTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/2/5/img/132325.jpg)
28 |
GU91180819 - ENTRETOISE More informationQuantity required : 2 |
