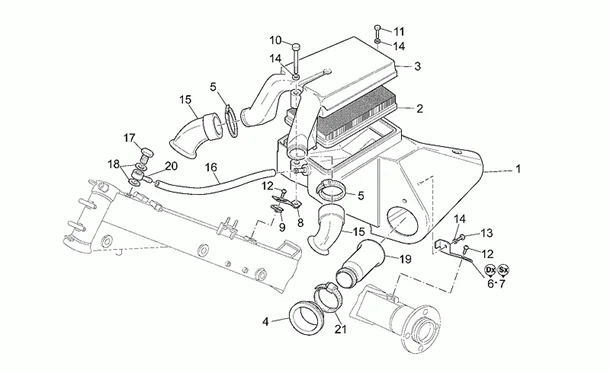

Chassis : 33.09 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1237/V_11_Le_Mans-Sport_Naked_1100_2001-2002_33.09.png)
1 |
GU01114031 - CASSA FILTRO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/8/1/img/130581.jpg)
2 |
AIR FILTER "PIAGGIO GENUINE PART" MOTO-GUZZI 940 BELLAGIO -GU30113600- More informationQuantity required : 1 |
||||||
|
3 |
GU01113490 - COPERCHIO FILTRO More informationQuantity required : 1 |
||||||
|
4 |
GU37114806 - MANCHON More informationQuantity required : 2 |
||||||
|
5 |
GU93305040 - COLLIER More informationQuantity required : 2 |
||||||
|
6 |
GU01116730 - PIASTRA DX More informationQuantity required : 1 |
||||||
|
7 |
GU01116731 - PIASTRA SX More informationQuantity required : 1 |
||||||
|
8 |
GU01114130 - PIASTRA ANT. More informationQuantity required : 1 |
||||||
|
9 |
GU28576592 - ECROU COLLIER M6 More informationQuantity required : 1 |
||||||
|
11 |
GU98084330 - VIS M6X30 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/4/img/73564.JPG)
12 |
GU98350312 - VIS M6X12 More informationQuantity required : 3 |
||||||
|
13 |
GU98350210 - VIS TBEI M5X10 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
14 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 4 |
||||||
|
15 |
GU02116901 - MANICOTTO ASPIRAZIONE More informationQuantity required : 2 |
||||||
|
16 |
GU00823952080 - TUBO BENZINA SAE J30 R9 8X14 More informationQuantity required : 1 |
||||||
|
17 |
GU95990084 - VIS PERCEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/0/img/73410.jpg)
18 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 NORGE, SPORT, BREVA, GRISO, STELVI, 1400 CALIFORNIA, AUDACE/APRILIA 750 DORSODURO, SHIVER, 1200 CAPONORD -GU01154230- More informationQuantity required : 2 |
||||||
|
19 |
GU01114400 - CORNETTO DI COLLEGAMENTO More informationQuantity required : 2 |
||||||
|
20 |
GU30107401 - RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/0/4/img/132604.jpg)
21 |
GU93304390 - COLLIER More informationQuantity required : 2 |
