Vehicle Exploded View - MOTO-GUZZI V11 1100 V 11 Le Mans-Sport Naked 1100 2001-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

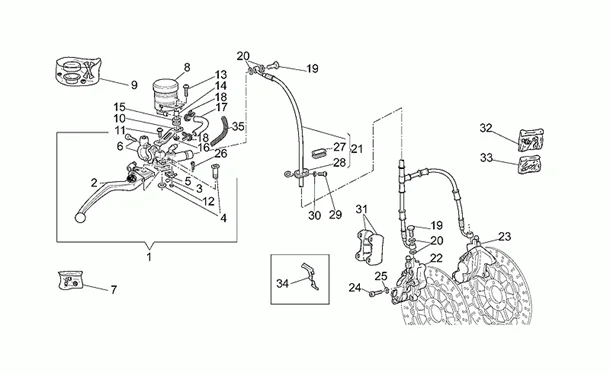

Chassis : 33.14 SYS.FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1237/V_11_Le_Mans-Sport_Naked_1100_2001-2002_33.14.png)
1 |
FRONT BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" MOTO-GUZZI V11 -GU01660140- More informationQuantity required : 1 |
||||||
|
2 |
GU01605640 - LEVA FRENO ANT.ALLUMINIO LUCIDO More informationQuantity required : 1 |
||||||
|
3 |
GU92295708 - BILLE More informationQuantity required : 1 |
||||||
|
4 |
GU27604815 - PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/6/5/img/130965.jpg)
5 |
GU30749860 - MINIRUPTEUR More informationQuantity required : 1 |
||||||
|
6 |
GU01530582 - CAVALLOTTO More informationQuantity required : 1 |
||||||
|
7 |
GU19659500 - GR.REVISION RACCORDDE POMP More informationQuantity required : 1 |
||||||
|
8 |
GU30665000 - RESERV.HUILE FREINS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/1/5/img/130915.jpg)
9 |
BRAKE FLUID TANK COVER - "PIAGGIO GENUINE PART" MOTO-GUZZI 1000 LE-MANS, STRADA, GT, DAYTONA, 1100 SPORT, V11, CALIFORNIA -GU30661100- More informationQuantity required : 1 |
||||||
|
10 |
GU01661460 - SUPPORTO SERBATOIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/4/img/73564.JPG)
11 |
GU98350312 - VIS M6X12 More informationQuantity required : 1 |
||||||
|
12 |
GU92601002 - ECROU More informationQuantity required : 2 |
||||||
|
13 |
GU98223620 - VIS More informationQuantity required : 1 |
||||||
|
14 |
GU91180617 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/7/0/img/132370.jpg)
15 |
GU91551167 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
16 |
GU92650136 - ECROU More informationQuantity required : 1 |
||||||
|
17 |
GU00823950050 - T GOMMA 5X9 More informationQuantity required : 1 |
||||||
|
18 |
GU61108500 - COLLIER D9 More informationQuantity required : 2 |
||||||
|
19 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
20 |
GU25656100 - GARNITURE More informationQuantity required : 6 |
||||||
|
21 |
GU01658831 - TUYAU FREIN COMPLETE GRIS More informationQuantity required : 1 |
||||||
|
22 |
GU01652330 - PINZA FRENO ANT.DX ORO More informationQuantity required : 1 |
||||||
|
23 |
GU01652230 - PINZA FRENO ANT.SX ORO More informationQuantity required : 1 |
||||||
|
24 |
GU986835306 - SCREW M10X1 25X30 8 8 DA ENISO 4762 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
25 |
OIL PUMP SHAFT WASHER (10,5X16X1) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -AP8152220- More informationQuantity required : 4 |
||||||
|
26 |
GU98200214 - VIS More informationQuantity required : 2 |
||||||
|
27 |
GU01658230 - GOMMINO More informationQuantity required : 1 |
||||||
|
28 |
GU01658430 - GUIDACAVO More informationQuantity required : 1 |
||||||
|
29 |
GU98350310 - VIS M6X20 More informationQuantity required : 1 |
||||||
|
30 |
GU95008306 - RONDELLE 6,4X12X1,2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/7/img/73417.jpg)
31 |
BRAKE PADS - "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V-7 FRONT, NEVADA FRONT, BREVA FRONT, 850 GRISO FRONT, BREVA FRONT, 1100 BREVA FRONT, CALIFORNIA FRONT, 1200 GRISO FRONT, NORGE FRONT, STELVIO FRONT, BREVA FRONT (PAIR) -GU01654630- More informationQuantity required : 2 |
||||||
|
32 |
GU01659230 - SPURGO+CAPPUCCIO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/2/6/img/101926.jpg)
33 |
PIN+CALIPER SPRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU01659130- More informationQuantity required : 2 |
||||||
|
34 |
GU01659131 - MOLLA More informationQuantity required : 2 |
||||||
|
35 |
GU30665860 - RESSORT More informationQuantity required : 1 |
