Vehicle Exploded View - MOTO-GUZZI V11 1100 V 11 Le Mans-Sport Naked 1100 2001-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

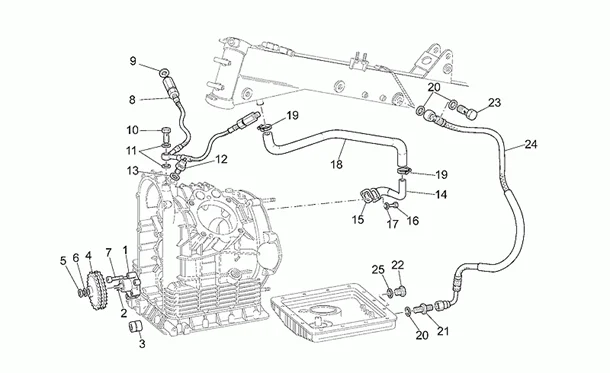

Moteur : 34.45 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1237/V_11_Le_Mans-Sport_Naked_1100_2001-2002_34.45.png)
1 |
GU30146400 - POMPE HUILE More informationQuantity required : 2 |
||||||
|
2 |
GU13148300 - CLAVETTE More informationQuantity required : 1 |
||||||
|
3 |
GU92252210 - ROULEMENT A ROULEAUX More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/6/3/6/img/130636.jpg)
4 |
OIL PUMP GEAR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU30147700- More informationQuantity required : 1 |
||||||
|
5 |
GU92602308 - ECROU More informationQuantity required : 1 |
||||||
|
6 |
GU95120085 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/4/1/img/133141.jpg)
7 |
GU98622430 - VIS M8X30 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/4/8/6/img/101486.jpg)
8 |
OIL PIPE "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, 850 LE-MANS, 850 T3, 1000 SP, STRADA -GU01153602- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/5/0/img/129950.jpg)
9 |
GU25656102 - GARNITURE More informationQuantity required : 2 |
||||||
|
10 |
GU95990037 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
11 |
O'RING GASKET FOR OIL PIPE "PIAGGIO GENUINE PART" MOTO-GUZZI V9 2016> -GU12154200- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/9/4/img/129394.jpg)
12 |
OIL PRESSURE SENSOR "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO-GUZZI -GU17768750- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/8/5/img/125185.jpg)
13 |
GU12006400 -JOINT More informationQuantity required : 1 |
||||||
|
14 |
GU01007200 - TUYAU RENIFLARD RADIATEUR More informationQuantity required : 1 |
||||||
|
15 |
GU12007600 - JOINT More informationQuantity required : 1 |
||||||
|
16 |
GU98084320 - VIS M6X20 More informationQuantity required : 2 |
||||||
|
17 |
GU95120065 - RONDELLE 6,5X11X2 More informationQuantity required : 2 |
||||||
|
18 |
GU30157400 - TUYAU RENIFLARD RADIATEUR More informationQuantity required : 1 |
||||||
|
19 |
GU93306018 - COLLIER 17X29X8 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/0/img/73410.jpg)
20 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 NORGE, SPORT, BREVA, GRISO, STELVI, 1400 CALIFORNIA, AUDACE/APRILIA 750 DORSODURO, SHIVER, 1200 CAPONORD -GU01154230- More informationQuantity required : 5 |
||||||
|
21 |
GU01161330 - RIDUZIONE More informationQuantity required : 1 |
||||||
|
22 |
GU95980216 - BOUCHON More informationQuantity required : 1 |
||||||
|
23 |
GU95990084 - VIS PERCEE More informationQuantity required : 1 |
||||||
|
24 |
GU01154630 - TUBO More informationQuantity required : 1 |
||||||
|
25 |
GU10154200 - JOINT More informationQuantity required : 1 |
