Vehicle Exploded View - MOTO-GUZZI V11 1100 V 11 Le Mans-Sport Naked 1100 2001-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

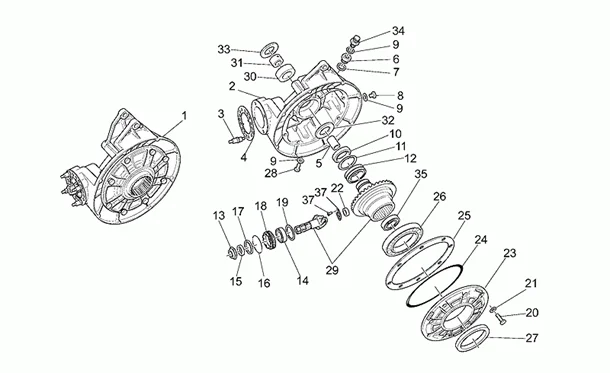

Chassis : 33.02 TRANSMISSION CPL. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1237/V_11_Le_Mans-Sport_Naked_1100_2001-2002_33.02.png)
1 |
GU01350290 - SCATOLA TRASMIS.CPL.NERO More informationQuantity required : 1 |
|||||||||
|
2 |
GU01350390 - SCATOLA TRASMIS.NERO More informationQuantity required : 1 |
|||||||||
|
3 |
GU04357900 - GOUJON More informationQuantity required : 4 |
|||||||||
|
4 |
GU04358700 - BAGUE More informationQuantity required : 1 |
|||||||||
|
5 |
GU01356930 - DISTANZIALE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/5/4/5/img/101545.jpg)
6 |
GASKET FOR TRANSMISSION OIL CAP "PIAGGIO GENUINE PART" MOTO-GUZZI V11 -GU01351230- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/0/img/73410.jpg)
7 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 NORGE, SPORT, BREVA, GRISO, STELVI, 1400 CALIFORNIA, AUDACE/APRILIA 750 DORSODURO, SHIVER, 1200 CAPONORD -GU01154230- More informationQuantity required : 1 |
|||||||||
|
8 |
GU95980214 - BOUCHON NIVEAU HUILE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/6/9/0/img/101690.jpg)
9 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" POUR MOTO-GUZZI BREVA, GRISO, NEVADA, NORGE, STELVIO, V-7, V-9, V-11, SPORT, CALIFORNIA, AUDACE, ELDORADO, BELAGIO -GU01528930- More informationQuantity required : 3 |
|||||||||
|
10 |
GU90413850 - BAGUE D'ETANCHEITE 38X50X7 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/5/6/img/132156.jpg)
11 |
GU90353040 - BAGUE SEEGER More informationQuantity required : 1 |
|||||||||
|
12 |
GU92234055 - ROULEMENT A ROULEAUX 40X45X55 More informationQuantity required : 1 |
|||||||||
|
13 |
GU04356700 - ECROU More informationQuantity required : 1 |
|||||||||
|
14 |
GU92201926 - ROULEMENT 25X62X25,4 More informationQuantity required : 2 |
|||||||||
|
15 |
GU04356800 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
|
16 |
GU90706616 - JOINT TORIQUE 61,60X2,62 More informationQuantity required : 1 |
|||||||||
|
17 |
GU90403257 More informationQuantity required : 1 |
|||||||||
|
18 |
GU04354900 - BAGUE More informationQuantity required : 1 |
|||||||||
|
19 |
GU04355302 - CALE 1,7 MM More informationQuantity required : 1 |
|||||||||
|
19 |
GU04355304 - CALE 1,9 MM More informationQuantity required : 1 |
|||||||||
|
19 |
GU04355300 - CALE 1,5 MM More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/5/1/2/img/128512.JPG)
19 |
GU04355301 - CALE 1,6 MM More informationQuantity required : 1 |
|||||||||
|
19 |
GU04355303 - CALE 1,8 MM More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/2/8/img/129628.jpg)
20 |
GU19357660 - VIS M8X25 More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
21 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 8 |
|||||||||
|
22 |
GU92231216 - ROULEMENT A ROULEAUX 12X24X16 More informationQuantity required : 1 |
|||||||||
|
23 |
GU04350400 - BRIDE More informationQuantity required : 1 |
|||||||||
|
24 |
GU90706958 - JOINT TORIQUE 158,42X2,62 More informationQuantity required : 1 |
|||||||||
|
25 |
GU04355100 - CALE 0,6 MM More informationQuantity required : 1 |
|||||||||
|
25 |
GU04355106 - CALE 1,2 MM More informationQuantity required : 1 |
|||||||||
|
25 |
GU04355101 - CALE 0,7 MM More informationQuantity required : 1 |
|||||||||
|
25 |
GU04355105 - CALE 1,1 MM More informationQuantity required : 1 |
|||||||||
|
25 |
GU04355102 - CALE 0,8 MM More informationQuantity required : 1 |
|||||||||
|
25 |
GU04355104 - CALE 1 MM More informationQuantity required : 1 |
|||||||||
|
25 |
GU04355103 - CALE 0,9 MM More informationQuantity required : 1 |
|||||||||
|
26 |
GU92208014 - ROULEMENT 80X125X14 More informationQuantity required : 1 |
|||||||||
|
27 |
GU90407085 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
28 |
OIL DRAIN CAP/TRANSMISSION DRAIN CAP "PIAGGIO GENUINE PART" FOR ALL MOTO-GUZZI -GU31003766- More informationQuantity required : 1 |
|||||||||
|
29 |
GU01354630 - COPPIA CONICA 11/32 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/3/7/img/132437.jpg)
30 |
TRANSMISSION BEARING "PIAGGIO GENUINE PART" MOTO-GUZZI 1000 V10, DAYTONA, 1100 V11, SPORT -GU92252225- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/4/5/img/132445.jpg)
31 |
BEARING ON TRANSMISSION COVER (LETTER A) "PIAGGIO GENUINE PART" MOTO-GUZZI 1000 DAYTONA, V10, 1100 SPORT, V11 -GU92259025- More informationQuantity required : 1 |
|||||||||
|
32 |
GU04351900 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/4/2/img/131842.jpg)
33 |
GU37359005 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/4/8/7/img/126487.jpg)
34 |
FILL CAP FOR GEARBOX OR TRANSMISSION "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA, STRADA, TARGA, V30, V50, V65 -GU19206501- More informationQuantity required : 1 |
|||||||||
|
35 |
GU92201821 - ROULEMENT 20X52X15 More informationQuantity required : 1 |
|||||||||
|
36 |
GU04353801 - BRIDE DE FIXATION More informationQuantity required : 1 |
|||||||||
|
37 |
GU98280614 - VIS M6X14 More informationQuantity required : 2 |
|||||||||
