Vehicle Exploded View - MOTO-GUZZI V11 1100 V 11 Le Mans-Sport Naked 1100 2001-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

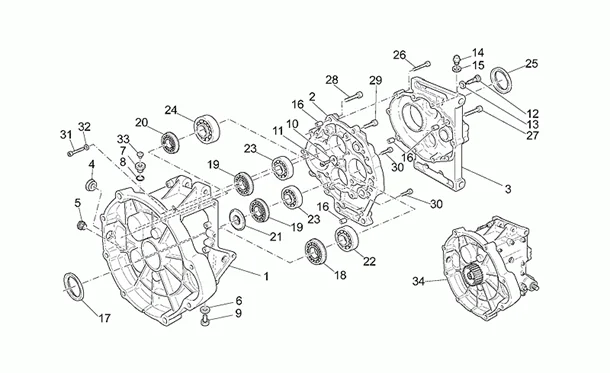

Moteur : 34.47 CARTER DE BOÎTE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1237/V_11_Le_Mans-Sport_Naked_1100_2001-2002_34.47.png)
1 |
GU01200290 - SCATOLA CAMBIO NERO More informationQuantity required : 1 |
||||||
|
2 |
GU01200840 - COUVERCLE BOITE NOIR More informationQuantity required : 1 |
||||||
|
3 |
GU01201340 - COUVERCLE NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/7/img/132577.jpg)
4 |
GU93180220 - BOUCHON More informationQuantity required : 1 |
||||||
|
5 |
GU01205730 - TAPPO LIVELLO OLIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/6/9/0/img/101690.jpg)
6 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" POUR MOTO-GUZZI BREVA, GRISO, NEVADA, NORGE, STELVIO, V-7, V-9, V-11, SPORT, CALIFORNIA, AUDACE, ELDORADO, BELAGIO -GU01528930- More informationQuantity required : 1 |
||||||
|
7 |
OIL PLUG "PIAGGIO GENUINE PART" COMMON FOR ALL MOTO-GUZZI RANGE -GU12022600- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/4/img/132224.jpg)
8 |
O'RING GASKET (20,24X2,62) FOR CLUTCH SHAFT Ø20,24X2,62 "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -GU90706203- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
9 |
OIL DRAIN CAP/TRANSMISSION DRAIN CAP "PIAGGIO GENUINE PART" FOR ALL MOTO-GUZZI -GU31003766- More informationQuantity required : 2 |
||||||
|
10 |
GU04205500 - PLAQUETTE More informationQuantity required : 4 |
||||||
|
11 |
GU98280620 - VIS More informationQuantity required : 4 |
||||||
|
12 |
GU04239400 - VIS PERCEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/8/5/img/125185.jpg)
13 |
GU12006400 -JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/4/8/7/img/126487.jpg)
14 |
FILL CAP FOR GEARBOX OR TRANSMISSION "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA, STRADA, TARGA, V30, V50, V65 -GU19206501- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/9/7/img/129097.jpg)
15 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" POUR MOTO-GUZZI 850 CALIFORNIA 1985>, 1100 CALIFORNIA 1994>, 750 V7 2008>, NEVADA 2012>, V9 2016>, V11 2001>, V65 1982> -GU10528900- More informationQuantity required : 1 |
||||||
|
16 |
GU19015020 - BAGUE More informationQuantity required : 4 |
||||||
|
17 |
GU90404059 - BAGUE D'ETANCHEITE 40X56X8/7 More informationQuantity required : 1 |
||||||
|
18 |
GU92234730 - ROULEMENT A ROULEAUX 30X62X16 More informationQuantity required : 1 |
||||||
|
19 |
GU92234720 - ROULEMENT A ROULEAUX 20X52X15 More informationQuantity required : 2 |
||||||
|
20 |
GU92234017 - ROULEMENT A ROULEAUX 17X40X12 More informationQuantity required : 1 |
||||||
|
21 |
GU04205100 - DISQUE More informationQuantity required : 2 |
||||||
|
22 |
GU92201423 - ROULEMENT A BILLES 20X52X17 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/8/9/img/132389.jpg)
23 |
BEARING FOR CLUTCH CASE (25X52X15) "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, NEVADA, SP, STRADA -GU92201225- More informationQuantity required : 2 |
||||||
|
24 |
GU92201141 - ROULEMENT A BILLES 40X68X15 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/9/3/img/132193.jpg)
25 |
GASKET RING FOR DRIVE SHAFT (42X56X7) "PIAGGIO GENUINE PART" MOTO-GUZZI V11 -GU90404255- More informationQuantity required : 1 |
||||||
|
26 |
GU98680345 - VIS TCEI M6X45 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/5/img/133155.jpg)
26 |
GU98680340 - VIS M6X40 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/6/1/img/133161.jpg)
27 |
GU98680445 - VIS M8X45 More informationQuantity required : 4 |
||||||
|
28 |
GU98680440 - VIS TCEI M8X40 More informationQuantity required : 2 |
||||||
|
29 |
GU98682430 - VIS M8X30 More informationQuantity required : 1 |
||||||
|
29 |
GU98682435 - VIS M8X35 More informationQuantity required : 1 |
||||||
|
30 |
GU98682330 - VIS M6X30 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
31 |
SCREW - (6X35) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150285- More informationQuantity required : 1 |
||||||
|
32 |
GU95000206 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/8/img/132578.jpg)
33 |
GU93180245 - BOUCHON More informationQuantity required : 1 |
||||||
|
34 |
GU01991560 - CAMBIO CPL.NERO More informationQuantity required : 1 |
