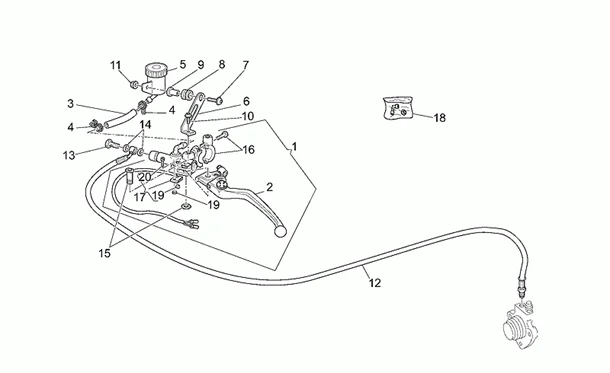

Chassis : 33.20 COMMANDE EMBRAYAGE CPL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1237/V_11_Le_Mans-Sport_Naked_1100_2001-2002_33.20.png)
1 |
GU01605560 - POMPA FRIZIONE LEVA NERA More informationQuantity required : 1 |
||||||
|
1 |
GU01605540 - POMPE EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/8/9/0/img/101890.jpg)
2 |
CLUTCH LEVER- "PIAGGIO GENUINE PART" MOTO-GUZZI V11 -GU01605760- More informationQuantity required : 1 |
||||||
|
3 |
GU30666200 - TUYAU More informationQuantity required : 1 |
||||||
|
4 |
GU61108500 - COLLIER D9 More informationQuantity required : 2 |
||||||
|
5 |
2B002130 - RESERV. HUILE FREINS More informationQuantity required : 2 |
||||||
|
6 |
GU01609060 - STAFFA SOST SERBATOIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/4/img/73564.JPG)
7 |
GU98350312 - VIS M6X12 More informationQuantity required : 1 |
||||||
|
8 |
GU91551083 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
9 |
GU91120610 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
10 |
GU98223620 - VIS More informationQuantity required : 1 |
||||||
|
11 |
GU92650136 - ECROU More informationQuantity required : 1 |
||||||
|
12 |
GU01606531 - TUBO FRIZIONE GRIGIO More informationQuantity required : 1 |
||||||
|
13 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
14 |
GU25656100 - GARNITURE More informationQuantity required : 2 |
||||||
|
15 |
GU27604815 - PIVOT More informationQuantity required : 1 |
||||||
|
16 |
GU01530582 - CAVALLOTTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/7/1/7/img/101717.jpg)
17 |
CLUTCH LEVER MICROSWITCH "PIAGGIO GENUINE PART" MOTO-GUZZI V11 -GU01530581- More informationQuantity required : 1 |
||||||
|
18 |
GU19659500 - GR.REVISION RACCORDDE POMP More informationQuantity required : 1 |
||||||
|
19 |
GU92601002 - ECROU More informationQuantity required : 2 |
||||||
|
20 |
GU98200214 - VIS More informationQuantity required : 2 |
