Vehicle Exploded View - MOTO-GUZZI V11 1100 V 11 Le Mans-Sport Naked 1100 2001-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

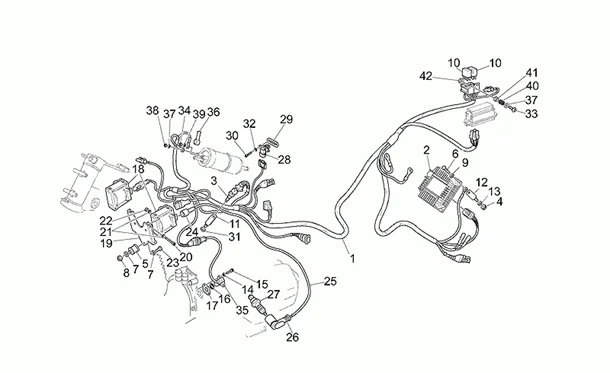

Chassis : 33.41 CIRCUIT ELECTRIQUE INJECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1237/V_11_Le_Mans-Sport_Naked_1100_2001-2002_33.41.png)
1 |
GU01725830 - CABLAGGIO INIEZIONE More informationQuantity required : 1 |
||||||
|
2 |
GU01729531 - CENTRALINA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/4/6/img/130446.jpg)
3 |
SENSOR FOR OIL TEMPERATURE "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO-GUZZI - GU29729461 - More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/1/img/73551.jpg)
5 |
SILENTBLOC "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU93222023- More informationQuantity required : 3 |
||||||
|
6 |
GU98084112 - VIS More informationQuantity required : 4 |
||||||
|
7 |
GU95000206 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
8 |
AP8150026 - ECROU More informationQuantity required : 3 |
||||||
|
9 |
GU95008204 - RONDELLE 4,3X8X0,5 More informationQuantity required : 4 |
||||||
|
10 |
GU01732560 - RELE' INTERUTTORE SIEMENS A1001A402 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/5/1/1/img/102511.JPG)
11 |
GU03163330 - SUPPORTO SENSORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/8/9/img/132589.jpg)
12 |
SILENTBLOC FOR ELECTRIC UNIT "PIAGGIO GENUINE PART" MOTO-GUZZI 1000 QUOTA, 1100 CALIFORNIA, V11 -GU93221315- More informationQuantity required : 4 |
||||||
|
13 |
GU95129080 - RONDELLE More informationQuantity required : 4 |
||||||
|
14 |
GU95004205 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/7/5/img/73575.jpg)
15 |
GU98682212 - VIS M5X12 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
16 |
O'RING GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -847180- More informationQuantity required : 1 |
||||||
|
17 |
GU01722700 - GUARNIZIONE 0,3MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/3/9/img/130439.jpg)
17 |
GU29722760 - JOINT 0,5 MM More informationQuantity required : 1 |
||||||
|
17 |
GU01722701 - GUARNIZIONE 0,4MM More informationQuantity required : 1 |
||||||
|
17 |
GU01722703 - GUARNIZIONE 0,8MM More informationQuantity required : 1 |
||||||
|
17 |
GU01722702 - GUARNIZIONE 0,6MM More informationQuantity required : 1 |
||||||
|
17 |
GU01722705 - GUARNIZIONE 1,5MM More informationQuantity required : 1 |
||||||
|
17 |
GU01722704 - GUARNIZIONE 1MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/3/3/img/130933.jpg)
18 |
IGNITION COIL "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA 1994>2004, 1200 GRISO 2007>2017, 750 V7 2008>2012, 1200 NORGE 2010>, 1200 SPORT 2008>2013, 1100 V11 1999>2005 -GU30716500- More informationQuantity required : 2 |
||||||
|
19 |
GU01407460 - SUPPORTO BOBINA More informationQuantity required : 1 |
||||||
|
20 |
GU98682125 - VIS M4X25 More informationQuantity required : 4 |
||||||
|
21 |
GU95008204 - RONDELLE 4,3X8X0,5 More informationQuantity required : 8 |
||||||
|
22 |
GU92630104 - ECROU M4X0,7 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
24 |
GU14717600 - CAPUCHON More informationQuantity required : 2 |
||||||
|
25 |
GU01718330 - CAVO A.T. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/4/3/img/101943.jpg)
26 |
GU01717430 - PIPETTA CANDELA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/3/5/img/130935.JPG)
27 |
GU30717061 - BOUGIE NGK BPR6ES More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/6/img/73466.JPG)
28 |
GU30729330 - DETEC.TEMPER.AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/5/9/img/73459.jpg)
29 |
GU30027931 - JOINT More informationQuantity required : 1 |
||||||
|
30 |
GU98610110 - VIS More informationQuantity required : 2 |
||||||
|
31 |
GU95004210 - RONDELLE 10,2X18X2 More informationQuantity required : 1 |
||||||
|
32 |
GU95000203 - RONDELLE More informationQuantity required : 2 |
||||||
|
33 |
GU98325316 - VIS More informationQuantity required : 2 |
||||||
|
34 |
GU92602204 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/4/7/img/101947.jpg)
35 |
T.D.C. SENSOR "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU01721600- More informationQuantity required : 1 |
||||||
|
36 |
GU30759600 - CAPUCHON More informationQuantity required : 2 |
||||||
|
37 |
GU95000205 - RONDELLE More informationQuantity required : 2 |
||||||
|
38 |
GU92602205 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
39 |
AP8150158 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
40 |
GU91551086 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
41 |
GU91110508 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
42 |
GU92630205 - ECROU More informationQuantity required : 2 |
