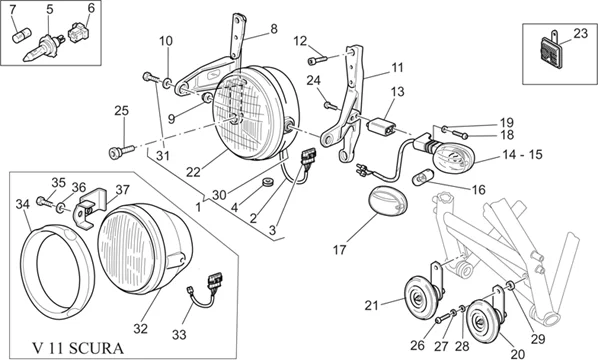

Chassis : 33.06 FEU AV NACKED
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1237/V_11_Le_Mans-Sport_Naked_1100_2001-2002_33.06.png)
1 |
GU037405405 - PHARE AVANT More informationQuantity required : 1 |
||||||
|
1 |
GU037405455 - PROJECTEUR AV.COMPLET GAUCHE More informationQuantity required : 1 |
||||||
|
2 |
GU02746900 - CABLAGGIO More informationQuantity required : 1 |
||||||
|
3 |
GU01756100 - CONNETTORE 4 VIE AMP More informationQuantity required : 1 |
||||||
|
4 |
GU91551033 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
5 |
LIGHT BULB 12V-60/55W H4 "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER AND MOTORCYCLE RANGE -292723- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/0/0/5/img/102005.jpg)
6 |
GU01756220 - PORTALAMPADA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/9/img/65759.jpg)
7 |
LIGHT BULB 12V 4W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -163015- More informationQuantity required : 1 |
||||||
|
8 |
GU01496140 - BRIDE DROITE NOIR MAT More informationQuantity required : 1 |
||||||
|
9 |
GU14439800 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.JPG)
10 |
GU95008208 - RONDELLE 8,4X15X1,8 More informationQuantity required : 2 |
||||||
|
11 |
GU01496240 - BRIDE GAUCHE NOIR MAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
12 |
GU98682316 - VIS M6X16 More informationQuantity required : 3 |
||||||
|
13 |
GU017534401 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/2/6/img/102326.jpg)
14 |
FLASHER-REAR-LEFT "PIAGGIO GENUINE PART" MOTO-GUZZI V11 -GU02750600- More informationQuantity required : 1 |
||||||
|
15 |
FLASHER-REAR-RIGHT "PIAGGIO GENUINE PART" MOTO-GUZZI V11 -GU02750601- More informationQuantity required : 1 |
||||||
|
16 |
GU93450127 - LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/8/img/72328.JPG)
17 |
AP8224258 - VITRE CLIGNOTANT; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/9/img/133059.jpg)
18 |
GU98370621 - VIS TBEI M6X20 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
19 |
AP8152105 - RONDELLE More informationQuantity required : 2 |
||||||
|
20 |
GU31975965 - KIT AVVISATORI TONO ALTO More informationQuantity required : 1 |
||||||
|
21 |
883463 - CLAXON TONO L More informationQuantity required : 1 |
||||||
|
22 |
GU29740530 - PROJECTEUR More informationQuantity required : 1 |
||||||
|
22 |
GU29740500 - GROUPE OPTIQUE More informationQuantity required : 1 |
||||||
|
23 |
GU01781600 - CATADIOTTRO AMBRA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/1/img/68461.jpg)
24 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE-GUZZI -672380- More informationQuantity required : 2 |
||||||
|
25 |
GU01498430 - VIS SPECIALE More informationQuantity required : 1 |
||||||
|
26 |
GU98622318 - VIS M6X18 More informationQuantity required : 2 |
||||||
|
27 |
AP8152105 - RONDELLE More informationQuantity required : 2 |
||||||
|
28 |
GU95000206 - RONDELLE More informationQuantity required : 2 |
||||||
|
29 |
GU91180606 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
30 |
GU03740437 - CALOTTE ARRIERE NOIR More informationQuantity required : 1 |
||||||
|
31 |
GU98064425 - VIS More informationQuantity required : 2 |
||||||
|
32 |
GU01740560 - PHARE AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/6/img/67886.jpg)
32 |
HEADLAMP "PIAGGIO GENUINE PART" 250-500 BEVERLY/MOTO-GUZZI 750 BREVA, NEVADA, 1100 V11 -640541- More informationQuantity required : 1 |
||||||
|
32 |
GU32740511 - PROJECTEUR AV.COMPLET GAUCHE More informationQuantity required : 1 |
||||||
|
33 |
GU01757660 - CABLAGGIO More informationQuantity required : 1 |
||||||
|
34 |
GU01578961 - GUARNIZIONE FANALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/5/img/67255.jpg)
35 |
582428 - VIS More informationQuantity required : 2 |
||||||
|
36 |
GU95021108 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
|
37 |
GU01496490 - PLAQUE SUPPORT More informationQuantity required : 2 |
