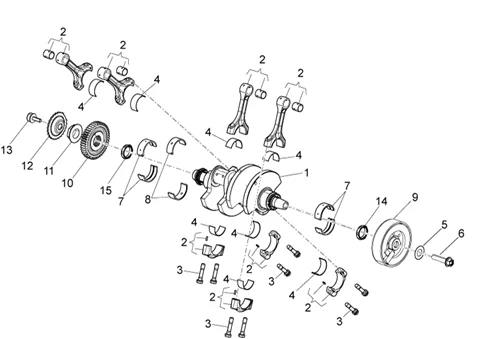

Vehicle Exploded View - APRILIA RSV4 1000 APRC Factory ABS 2013-2014 APRILIA

Moteur : 29.39 ARBRE MOTEUR
Arbre moteur
Search
B045412CC - ARBRE MOTEUR CPL.

1
P2R reference P2R reference 62557
Maker reference Maker reference B045412CC

B045412CC - ARBRE MOTEUR CPL.

More information

Quantity required : 1
B045412AA - ARBRE MOTEUR CPL.

1
P2R reference P2R reference 62556
Maker reference Maker reference B045412AA

B045412AA - ARBRE MOTEUR CPL.

More information

Quantity required : 1
B045412DD - ARBRE MOTEUR CPL.

1
P2R reference P2R reference 62558
Maker reference Maker reference B045412DD

B045412DD - ARBRE MOTEUR CPL.

More information

Quantity required : 1
B045412FF - ARBRE MOTEUR CPL.

1
P2R reference P2R reference 62559
Maker reference Maker reference B045412FF

B045412FF - ARBRE MOTEUR CPL.

More information

Quantity required : 1
2A000166EE - BIELLE CPL.

2
P2R reference P2R reference 37643
Maker reference Maker reference 2A000166EE

2A000166EE - BIELLE CPL.

More information

Quantity required : 1
2A000166DD - BIELLE CPL.

2
P2R reference P2R reference 37642
Maker reference Maker reference 2A000166DD

2A000166DD - BIELLE CPL.

More information

Quantity required : 4
2A000166CC - BIELLE CPL.

2
P2R reference P2R reference 37641
Maker reference Maker reference 2A000166CC

2A000166CC - BIELLE CPL.

More information

Quantity required : 1
CONNECTING ROD ASSY APRILIA 1000 RSV-4, 1000 TUONO - FOR CAMSHAFT 44/BB (A5) - 2A000166BB -

2
P2R reference P2R reference 37640
Maker reference Maker reference 2A000166BB

CONNECTING ROD ASSY APRILIA 1000 RSV-4, 1000 TUONO - FOR CAMSHAFT 44/BB (A5) - 2A000166BB -

More information

Quantity required : 1
SCREW - FOR CONNECTING ROD "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO V4 -899565-

3
P2R reference P2R reference 43234
Maker reference Maker reference 899565

SCREW - FOR CONNECTING ROD "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO V4 -899565-

More information

Quantity required : 8
BEARING SHELL -- RED "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -8571170001-

4
P2R reference P2R reference 40300
Maker reference Maker reference 8571170001

BEARING SHELL -- RED "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -8571170001-

More information

Quantity required : 2
BEARING SHELL -- BLUE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -8571170002-

4
P2R reference P2R reference 40301
Maker reference Maker reference 8571170002

BEARING SHELL -- BLUE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -8571170002-

More information

Quantity required : 2
BEARING SHELL -- YELLOW "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -8571170003-

4
P2R reference P2R reference 40302
Maker reference Maker reference 8571170003

BEARING SHELL -- YELLOW "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -8571170003-

More information

Quantity required : 2
BEARING SHELL -- BLUE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -B0447240B-

4
P2R reference P2R reference 108979
Maker reference Maker reference B0447240B

BEARING SHELL -- BLUE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -B0447240B-

More information

Quantity required : 2
BEARING SHELL -- YELLOW "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -B0447240G-

4
P2R reference P2R reference 139362
Maker reference Maker reference B0447240G

BEARING SHELL -- YELLOW "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -B0447240G-

More information

Quantity required : 2
BEARING SHELL -- GREEN "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -B0447240V-

4
P2R reference P2R reference 139363
Maker reference Maker reference B0447240V

BEARING SHELL -- GREEN "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -B0447240V-

More information

Quantity required : 2
897478 - RONDELLE

5
P2R reference P2R reference 70875
Maker reference Maker reference 897478

897478 - RONDELLE

More information

Quantity required : 1
SCREW - FOR IGNITION ROTOR (12x1,25x50) "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4, TUONO V4/MOTO-GUZZI 750 V7, 850 V9 -857206-

6
P2R reference P2R reference 69753
Maker reference Maker reference 857206

SCREW - FOR IGNITION ROTOR (12X1,25X50) "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4, TUONO V4/MOTO-GUZZI 750 V7, 850 V9 -857206-

More information

Quantity required : 1
BEARING SHELL -- RED "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -8571320R-

7
P2R reference P2R reference 108943
Maker reference Maker reference 8571320R

BEARING SHELL -- RED "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -8571320R-

More information

Quantity required : 4
BEARING SHELL -- BLUE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -8571320B-

7
P2R reference P2R reference 108940
Maker reference Maker reference 8571320B

BEARING SHELL -- BLUE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -8571320B-

More information

Quantity required : 4
BEARING SHELL -- YELLOW "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -8571320G-

7
P2R reference P2R reference 108941
Maker reference Maker reference 8571320G

BEARING SHELL -- YELLOW "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -8571320G-

More information

Quantity required : 4
BEARING SHELL "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO V4 -8571300R-

8
P2R reference P2R reference 108938
Maker reference Maker reference 8571300R

BEARING SHELL "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO V4 -8571300R-

More information

Quantity required : 2
BEARING SHELL -- BLUE "PIAGGIO GENUINE PART" PIAGGIO APRILIA 1000 RSV-4, TUONO -8571300B-

8
P2R reference P2R reference 108935
Maker reference Maker reference 8571300B

BEARING SHELL -- BLUE "PIAGGIO GENUINE PART" PIAGGIO APRILIA 1000 RSV-4, TUONO -8571300B-

More information

Quantity required : 2
8571300G - DEMI ROULEMENT

8
P2R reference P2R reference 108936
Maker reference Maker reference 8571300G

8571300G - DEMI ROULEMENT

More information

Quantity required : 2
1A010574 - VOLANT MAGNETIQUE

9
P2R reference P2R reference 156426
Maker reference Maker reference 2D000049

1A010574 - VOLANT MAGNETIQUE

More information

Quantity required : 1
1A010574 - VOLANT MAGNETIQUE

9
P2R reference P2R reference 156426
Maker reference Maker reference 1A010574

1A010574 - VOLANT MAGNETIQUE

More information

Quantity required : 1
899484 - ENGRENAGE

10
P2R reference P2R reference 43210
Maker reference Maker reference 899484

899484 - ENGRENAGE

More information

Quantity required : 1
B043204 - BAGUE

11
P2R reference P2R reference 62046
Maker reference Maker reference B043204

B043204 - BAGUE

More information

Quantity required : 1
857118 - CODEUR COMPTEUR

12
P2R reference P2R reference 40303
Maker reference Maker reference 857118

857118 - CODEUR COMPTEUR

More information

Quantity required : 1
857077 - VIS SPECIALE

13
P2R reference P2R reference 40278
Maker reference Maker reference 857077

857077 - VIS SPECIALE

More information

Quantity required : 1
898092 - BAGUE

14
P2R reference P2R reference 42902
Maker reference Maker reference 898092

898092 - BAGUE

More information

Quantity required : 1
897474 - ENTRETOISE

15
P2R reference P2R reference 42772
Maker reference Maker reference 897474

897474 - ENTRETOISE

More information

Quantity required : 1
