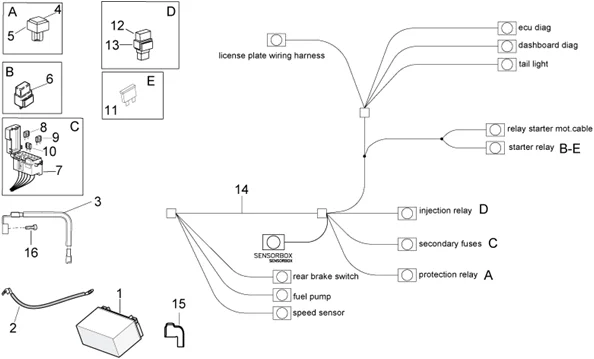

Chassis : 28.34 CIRCUIT ELECTRIQUE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/319/RSV4_1000_APRC_Factory_ABS_2013-2014_28.34.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/5/3/img/67853.jpg)
1 |
639792 - BATTERIE YT12A-BS 12/10 More informationQuantity required : 1 |
||||||
2 |
858869 - CABLAGE More informationQuantity required : 1 |
||||||
|
3 |
B044640 - CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/2/7/img/70827.jpg)
4 |
INJECTION RELAY "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -895481- More informationQuantity required : 1 |
||||||
|
5 |
896715 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/7/img/146197.jpg)
6 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300-400-500 CC/APRILIA 900 SHIVER, DORSODURO, 1000 RSV-4, TUONO V4 -1D001697R- More informationQuantity required : 1 |
||||||
|
7 |
858212 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
8 |
CM225605 - FUSIBLE More informationQuantity required : 2 |
||||||
|
9 |
CM225607 - FUSIBLE More informationQuantity required : 1 |
||||||
|
10 |
CM225615 - More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.JPG)
11 |
CM225730 - FUSIBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
12 |
RELAY 12V/30A "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA/MOTO-GUZZI -AP8224462- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.JPG)
13 |
AP8220283 - CAOUTCHOUC More informationQuantity required : 5 |
||||||
|
14 |
B044613 - CABLAGE PRINCIPAL More informationQuantity required : 1 |
||||||
|
14 |
2D000061 - CABLAGE More informationQuantity required : 1 |
||||||
|
15 |
895701 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/2/6/img/67226.jpg)
16 |
581596 - VIS More informationQuantity required : 2 |
