Vehicle Exploded View - APRILIA RSV4 1000 APRC Factory ABS 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

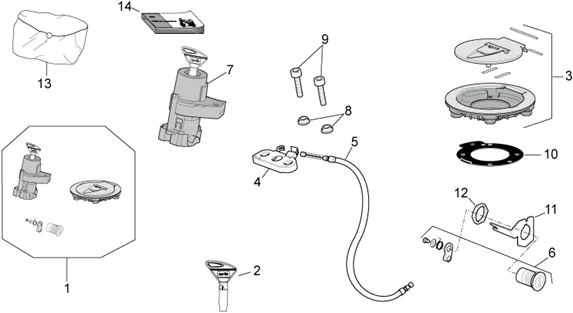

Chassis : 28.36 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/319/RSV4_1000_APRC_Factory_ABS_2013-2014_28.36.PNG)
1 |
B043920 - KIT SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/2/3/img/49523.jpg)
2 |
KEYBLANK "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2 2004>2008, RSV-4 2009>, TUONO V2 2006>2009, TUNO V4 2011>, 1100 TUONO V4 2015>, 1200 CAPONORD 2014> -AP8140711- More informationQuantity required : 1 |
||||||
|
3 |
B043929 - BOUCHON ESSENCE More informationQuantity required : 1 |
||||||
|
4 |
AP8102913 - PL.FIX.SELLE PASS. More informationQuantity required : 1 |
||||||
|
5 |
858955 - CABLE SERRURE More informationQuantity required : 1 |
||||||
|
6 |
AP8104719 - SERRATURA SELLA More informationQuantity required : 1 |
||||||
|
7 |
858580 - KIT SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/0/7/img/57007.jpg)
8 |
AP8221129 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
9 |
SCREW - (6X35) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150285- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/8/img/71238.jpg)
10 |
AP8104803 - GUARNIZIONE TAPPO BENZINA More informationQuantity required : 1 |
||||||
|
11 |
AP8134948 - PIASTRINA FERMACAVO More informationQuantity required : 1 |
||||||
|
12 |
AP8102523 - ECROU SERRURE More informationQuantity required : 1 |
||||||
|
13 |
894056 - TROUSSE A OUTILS More informationQuantity required : 1 |
