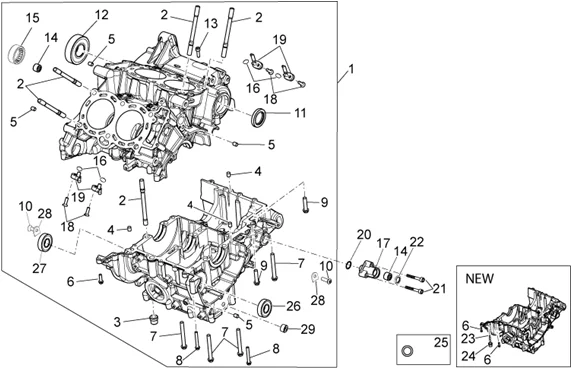

Vehicle Exploded View - APRILIA RSV4 1000 APRC Factory ABS 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Moteur : 29.38 CARTER I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/319/RSV4_1000_APRC_Factory_ABS_2013-2014_29.38.PNG)
1 |
2A000674 - KIT BLOC CARTER MOTEUR More informationQuantity required : 1 |
||||||
|
2 |
857087 - VIS SANS T?TE More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/5/6/img/42756.JPG)
3 |
897434 - ECROU BRIDE More informationQuantity required : 6 |
||||||
|
4 |
857427 - GOUPILLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/5/6/img/66356.JPG)
5 |
411209 - GOUJON More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
6 |
AP8152280 - VIS BRIDE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/6/img/71956.jpg)
7 |
AP8152294 - VIS BRIDE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/6/img/71946.jpg)
8 |
SCREW - FLANGE -AP8152284- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
9 |
AP8152289 - VIS BRIDE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/3/img/71923.jpg)
10 |
AP8152166 - VIS FHC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/1/2/img/40312.jpg)
11 |
GASKET RING "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -857128- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/0/1/5/img/43015.jpg)
12 |
GEARBOX BEARING "PIAGGIO GENUINE PART" (30X72X19) APRILIA 1000-1100 RSV-4, TUONO V4 -898633- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
13 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/4/9/8/img/62498.JPG)
14 |
B045224 - CAGE A ROULEAUX More informationQuantity required : 2 |
||||||
|
15 |
857249 - CAGE A ROULEAUX HK1512 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/0/5/img/132205.jpg)
16 |
GU90706009 - VIS More informationQuantity required : 4 |
||||||
|
17 |
857090 - SUPPORT More informationQuantity required : 1 |
||||||
|
18 |
857140 - VIS More informationQuantity required : 4 |
||||||
|
18 |
B046202 - VIS More informationQuantity required : 4 |
||||||
|
19 |
857139 - BODY JET OIL More informationQuantity required : 4 |
||||||
|
19 |
B045360 - JET MAXIMUM More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/9/9/img/40299.jpg)
20 |
857109 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
21 |
SCREW - (6X35) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150285- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/1/1/img/40311.jpg)
22 |
GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -857127- More informationQuantity required : 1 |
||||||
|
23 |
857495 - VIS SANS T?TE More informationQuantity required : 1 |
||||||
|
24 |
857496 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/2/0/img/40320.JPG)
25 |
857144 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/5/7/img/42757.jpg)
26 |
897435 - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/5/8/img/42758.jpg)
27 |
CRANKCASE BEARING "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4, TUONO V4 -897436- More informationQuantity required : 1 |
||||||
|
28 |
AP9150145 - PIASTRINA RIT.CUSCIN.L More informationQuantity required : 2 |
||||||
|
29 |
974060 - BOUCHON More informationQuantity required : 2 |
