Vehicle Exploded View - APRILIA RSV4 1000 APRC Factory ABS 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

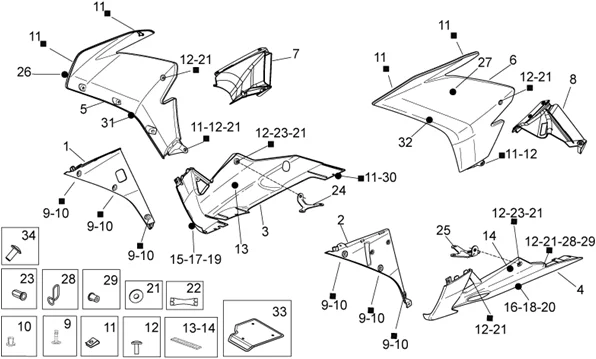

Chassis : 28.10 CARROSSERIE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/319/RSV4_1000_APRC_Factory_ABS_2013-2014_28.10.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/5/7/9/img/40579.JPG)
1 |
858828 - CARENE DTE INT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/5/8/0/img/40580.JPG)
2 |
858829 - CARENE INF.G. More informationQuantity required : 1 |
||||||
3 |
B04444200XN2 - CARENE INF.D NOIRE More informationQuantity required : 1 |
||||||
|
3 |
858825000XR4 - CARENE INF.D.ROUGE More informationQuantity required : 1 |
||||||
|
3 |
2H000221000XR4 - CARENE INF.D.ROUGE More informationQuantity required : 1 |
||||||
|
4 |
858826000XR4 - CARENE INF.G.ROUGE More informationQuantity required : 1 |
||||||
|
4 |
B04444300XN2 - CARENE INF.G NOIRE More informationQuantity required : 1 |
||||||
|
5 |
89410700NI - FLANC D More informationQuantity required : 1 |
||||||
|
5 |
89410700XN2 - CARENE LATERALE D NOIR More informationQuantity required : 1 |
||||||
|
6 |
LEFT LATERAL FAIRING "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4 - BLACK -89736200XN2- More informationQuantity required : 1 |
||||||
|
6 |
89736200NI - FLANC G More informationQuantity required : 1 |
||||||
|
7 |
FRONT RIGHT AIR PULLER "PIAGGIO GENUINE PART" PIAGGIO APRILIA 50-125 RS 2011>, 1000 RSV-4 -893979- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/1/0/7/img/42107.jpg)
8 |
FRONT LEFT AIR PULLER "PIAGGIO GENUINE PART" PIAGGIO APRILIA 50-125 RS 2011>, 1000 RSV-4 -893980- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
9 |
CLIP FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE OF MOTORBIKES -AP8144616- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
10 |
AP8144563 - RIVETTO IN PLASTICA MASCHIO More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
11 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/4/4/3/img/42443.jpg)
12 |
896175 - VIS More informationQuantity required : 6 |
||||||
|
13 |
894196 - PROTECTION BR?LURE More informationQuantity required : 1 |
||||||
|
14 |
894197 - PROTECTION BR?LURE More informationQuantity required : 1 |
||||||
|
15 |
898543 - DECALCO More informationQuantity required : 1 |
||||||
|
15 |
2H000073 - DECALCO More informationQuantity required : 1 |
||||||
|
16 |
2H000074 - DECALCO More informationQuantity required : 1 |
||||||
|
16 |
898542 - DECALCO More informationQuantity required : 1 |
||||||
|
17 |
2H000235 - DECALCO More informationQuantity required : 1 |
||||||
|
17 |
B044436 - DECALCO More informationQuantity required : 1 |
||||||
|
17 |
2H000066 - DECALCO More informationQuantity required : 1 |
||||||
|
18 |
B044437 - DECALCO More informationQuantity required : 1 |
||||||
|
18 |
2H000236 - DECALCO More informationQuantity required : 1 |
||||||
|
18 |
2H000067 - DECALCO More informationQuantity required : 1 |
||||||
|
19 |
B044436 - DECALCO More informationQuantity required : 1 |
||||||
|
20 |
B044437 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/0/img/71410.jpg)
21 |
FRONT DUST COVER RING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8120622- More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/8/4/9/img/41849.jpg)
22 |
890964 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/2/img/72142.jpg)
23 |
AP8201755 - RIVET FILETE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/8/5/img/42385.jpg)
24 |
RIGHT FAIRING BRACKET "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4 -895909- More informationQuantity required : 1 |
||||||
|
25 |
LEFT FAIRING BRACKET "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4 -895910- More informationQuantity required : 1 |
||||||
|
26 |
2H000231 - DECALCO More informationQuantity required : 1 |
||||||
|
26 |
2H000075 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/2/7/9/img/62279.jpg)
26 |
B044435 - DECALCO More informationQuantity required : 1 |
||||||
|
27 |
2H000232 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/2/7/8/img/62278.jpg)
27 |
B044434 - PLAQUE More informationQuantity required : 1 |
||||||
|
27 |
2H000075 - DECALCO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/6/img/71396.JPG)
28 |
AP8120428 - GUIDE-CABLE SUP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
29 |
NUT - WITH RUBBER INSERT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120531- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/8/8/img/42388.jpg)
30 |
895915 - VIS More informationQuantity required : 1 |
||||||
|
31 |
2H000064 - DECALCO More informationQuantity required : 1 |
||||||
|
31 |
2H000233 - DECALCO More informationQuantity required : 1 |
||||||
|
31 |
B044797 - DECALCO More informationQuantity required : 1 |
||||||
|
32 |
2H000065 - DECALCO More informationQuantity required : 1 |
||||||
|
32 |
2H000234 - DECALCO More informationQuantity required : 1 |
||||||
|
32 |
B044798 - DECALCO More informationQuantity required : 1 |
||||||
|
33 |
B043880 - BRIDE More informationQuantity required : 1 |
||||||
|
34 |
B045263 - RIVET More informationQuantity required : 1 |
