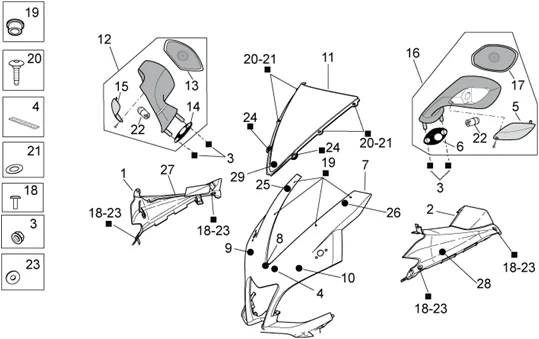

Vehicle Exploded View - APRILIA RSV4 1000 APRC Factory ABS 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Chassis : 28.09 CARROSSERIE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/319/RSV4_1000_APRC_Factory_ABS_2013-2014_28.09.PNG)
1 |
85881300XN6 - FERM.CARENE S.D.P.N. More informationQuantity required : 1 |
||||||
|
2 |
89732600XN6 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/0/5/img/50905.jpg)
3 |
AP8150506 - DADO ESAGONALE FLANG.M6 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
4 |
AP8117033 - ADHESIVE SPONGE More informationQuantity required : 1 |
||||||
|
5 |
LENS FOR FLASHER - ON MIRROR - LEFT- "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, RSV-4, 850 SRV -AP8127700- More informationQuantity required : 1 |
||||||
|
5 |
AP8104759 - VETRO INDICAT.ANT.SX More informationQuantity required : 1 |
||||||
|
6 |
893936 - JOINT More informationQuantity required : 1 |
||||||
|
7 |
2H000068000XR4 - AVANT CARENAGE, ROUGE More informationQuantity required : 1 |
||||||
|
7 |
2H000218000NI - AVANT CARENAGE, NOIR More informationQuantity required : 1 |
||||||
|
7 |
89857000XR4 - AVANT CARENAGE, ROUGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/9/7/8/img/42978.jpg)
8 |
898533 - DECALCO More informationQuantity required : 1 |
||||||
|
8 |
2H000228 - DECALCO More informationQuantity required : 1 |
||||||
|
8 |
2H000063 - DECALCO More informationQuantity required : 1 |
||||||
|
9 |
893763 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/0/1/5/img/42015.jpg)
10 |
893764 - DECALCO More informationQuantity required : 1 |
||||||
|
11 |
893257 - COUPOLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/7/9/img/42379.jpg)
11 |
WINDSHIELD "PIAGGIO GENUINE PART" APRILIA 50-125 RS4 2011>, 1000 RSV-4 2009>2015 -895869 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/1/1/4/img/43114.jpg)
12 |
MIRROR- RIGHT "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4 -899202- More informationQuantity required : 1 |
||||||
|
12 |
899204 - MIROIR RETROVISEUR DTE More informationQuantity required : 1 |
||||||
|
13 |
RIGHT REARWIEW MIRROR "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, RSV-4 -AP8104755- More informationQuantity required : 1 |
||||||
|
14 |
893935 - JOINT More informationQuantity required : 1 |
||||||
|
15 |
AP8104760 - VETRO INDICAT.ANT.DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/2/7/6/img/48276.jpg)
15 |
LENS FOR FLASHER - ON MIRROR - RIGHT- "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, RSV-4, 850 SRV -AP8127699- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/1/1/5/img/43115.jpg)
16 |
MIRROR- LEFT "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4 -899203- More informationQuantity required : 1 |
||||||
|
16 |
899205 - MIROIR RETROVISEUR GCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/5/6/img/45456.jpg)
17 |
LEFT REARWIEW MIRROR "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, RSV-4 -AP8104754- More informationQuantity required : 1 |
||||||
|
18 |
893838 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/0/img/71770.jpg)
19 |
AP8144564 - CAOUTCHOUC AVEC INSERT More informationQuantity required : 4 |
||||||
|
20 |
893839 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/1/img/71771.jpg)
21 |
AP8144565 - RONDELLA IN NYLON More informationQuantity required : 4 |
||||||
|
22 |
AP8127489 - LAMPE RY10W 12V More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
22 |
LIGHT BULB 12V/10W "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -181746- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/0/img/71410.jpg)
23 |
FRONT DUST COVER RING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8120622- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/3/8/img/56838.jpg)
24 |
AP8220186 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
25 |
2H000229 - DECALCO More informationQuantity required : 1 |
||||||
|
25 |
898788 - DECALCO More informationQuantity required : 1 |
||||||
|
26 |
898789 - DECALCO More informationQuantity required : 1 |
||||||
|
26 |
2H000230 - DECALCO More informationQuantity required : 1 |
||||||
|
27 |
898534 - DECALCO More informationQuantity required : 1 |
||||||
|
28 |
898535 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/0/9/img/42309.jpg)
29 |
895335 - DECALCO More informationQuantity required : 1 |
