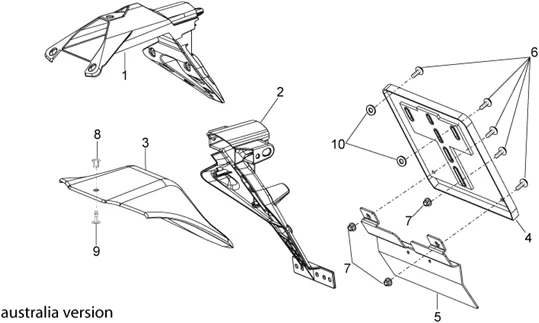

Chassis : 28.58 CARROSSERIE POSTERIEURE III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/319/RSV4_1000_APRC_Factory_ABS_2013-2014_28.58.PNG)
1 |
REAR MUDGUARD "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>, TUONO, 1000 RSV-4, TUONO V4, 1200 CAPONORD -858840- More informationQuantity required : 1 |
||||||
|
2 |
897482 - PORTE-PLAQUE More informationQuantity required : 1 |
||||||
|
3 |
895487 - GARDE-BOUE ARRIERE More informationQuantity required : 1 |
||||||
|
4 |
895914 - PORTE-PLAQUE More informationQuantity required : 1 |
||||||
|
5 |
895488 - GARDE-BOUE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
6 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
7 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
8 |
CLIP FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE OF MOTORBIKES -AP8144616- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
9 |
AP8144563 - RIVETTO IN PLASTICA MASCHIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
10 |
AP8150382 - RONDELLE More informationQuantity required : 2 |
