Vehicle Exploded View - APRILIA RSV4 1000 APRC Factory ABS 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

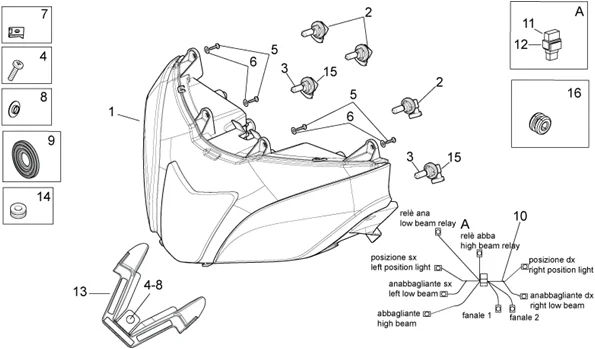

Chassis : 28.31 PHARE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/319/RSV4_1000_APRC_Factory_ABS_2013-2014_28.31.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/2/6/7/img/38267.jpg)
1 |
HEAD LIGHT - "PIAGGIO GENUINE PART" APRILIA 850 SRV, 1000 RSV-4, 1200 CAPONORD -2R000161- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/9/8/img/67898.jpg)
2 |
LIGHT BULB (12V - 55W H11) "PIAGGIO GENUINE PART" 50-125 APRILIA RS, 1000 RSV-4, CAPONORD, PEGASO, TUONO -640754- More informationQuantity required : 3 |
||||||
3 |
893929 - FEU DE POSITION More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/8/8/img/97088.jpg)
4 |
AP8150515 - VITE AUTOMASCHIANTE M5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
5 |
AP8150509 - VIS TARAUD 5X14 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
6 |
AP8150382 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
7 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
8 |
AP8121032 - DOUILLE More informationQuantity required : 1 |
||||||
|
9 |
894796 - COIFFE PHARE More informationQuantity required : 3 |
||||||
|
10 |
858867 - CABLAGE FEU AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
11 |
RELAY 12V/30A "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA/MOTO-GUZZI -AP8224462- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.JPG)
12 |
AP8220283 - CAOUTCHOUC More informationQuantity required : 5 |
||||||
|
13 |
894057 - FERMETURE INF.PHARE AV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
14 |
AP8120405 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
15 |
893930 - PORTE-AMPOULE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
16 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 2 |
