Vehicle Exploded View - APRILIA RSV4 1000 APRC Factory ABS 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

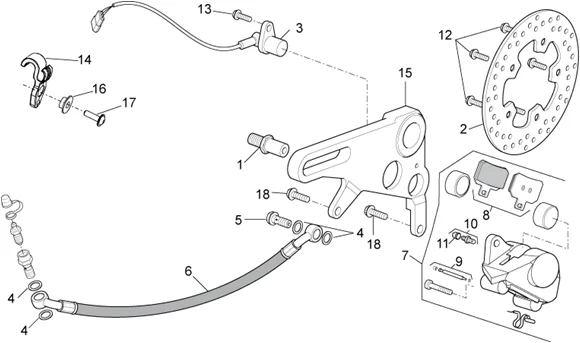

Chassis : 28.30 PINCE FREIN AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/319/RSV4_1000_APRC_Factory_ABS_2013-2014_28.30.PNG)
1 |
898486 - PIVOT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/5/7/5/img/39575.jpg)
2 |
REAR BRAKE DISC "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO V4 -85248R- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.JPG)
3 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 1 |
|||||||||
|
3 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
4 |
AP8113004 - RONDELLE More informationQuantity required : 4 |
|||||||||
|
5 |
2B001983 - VIS TUYAU FREIN More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/3/9/img/40639.jpg)
6 |
REAR BRAKE HOSE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -858902- More informationQuantity required : 1 |
|||||||||
|
7 |
B044357 - PINCE FREIN AR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/0/9/9/img/42099.jpg)
8 |
REAR BRAKE PADS - "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO, 1100 TUONO (PAIR) -893969- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/2/1/img/71321.JPG)
9 |
AP8113752 - AXE +GOUPILLE PINCE; More informationQuantity required : 1 |
|||||||||
|
10 |
AP8113753 - PURGE AIR; More informationQuantity required : 1 |
|||||||||
|
11 |
AP8113070 - CAPUCHON RENIFLARD More informationQuantity required : 1 |
|||||||||
|
12 |
894505 - VIS BRIDE More informationQuantity required : 7 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
13 |
AP8152279 - VIS BRIDE More informationQuantity required : 1 |
|||||||||
|
14 |
858791 - PROTECTION TUYAU FREIN ARRIERE More informationQuantity required : 1 |
|||||||||
|
15 |
896896 - SUPPORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/9/img/72319.jpg)
16 |
AP8221349 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
17 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
18 |
SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286- More informationQuantity required : 2 |
|||||||||
