Vehicle Exploded View - APRILIA RSV4 1000 APRC Factory ABS 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

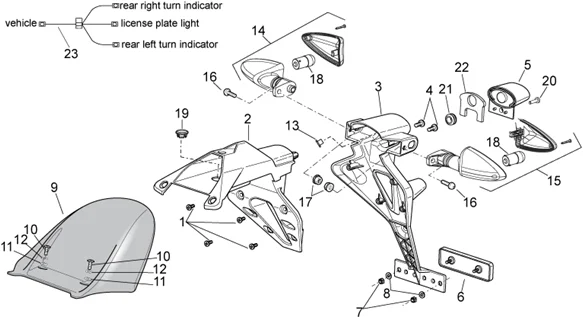

Chassis : 28.13 CARROSSERIE POSTERIEURE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/319/RSV4_1000_APRC_Factory_ABS_2013-2014_28.13.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
1 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/5/img/72325.jpg)
1 |
REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -AP8224164- More informationQuantity required : 2 |
||||||
2 |
REAR MUDGUARD "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>, TUONO, 1000 RSV-4, TUONO V4, 1200 CAPONORD -858840- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
2 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 7 |
||||||
|
3 |
AP8134783 - SUPPORTO CATADIOTTRO More informationQuantity required : 2 |
||||||
|
3 |
897482 - PORTE-PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
4 |
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
4 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/6/img/45896.JPG)
5 |
AP8112916 - CATADIOPTRE FEU ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/2/img/69642.jpg)
5 |
NUMBER PLATE LIGHT "PIAGGIO GENUINE PART" COMMON TO THE MOTO APRILIA + MOTO-GUZZI RANGE -85256R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
6 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
|
6 |
AP8112916 - CATADIOPTRE FEU ARRIERE More informationQuantity required : 1 |
||||||
|
7 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
8 |
AP8150158 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/0/6/img/40606.jpg)
8 |
MUDGUARD - REAR "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>, TUONO, 1000 RSV-4, TUONO V4, 1200 CAPONORD -858842- More informationQuantity required : 1 |
||||||
|
9 |
894566 - DOUILLE More informationQuantity required : 1 |
||||||
|
9 |
890969 - GARDE-BOUE ARRIERE More informationQuantity required : 1 |
||||||
|
10 |
894900 - SPACER FOR NUMBERPLATE L. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/7/img/71917.jpg)
10 |
AP8152137 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
11 |
AP8150179 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
11 |
AP8112600 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
12 |
AP8150182 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 2 |
||||||
|
12 |
AP8117258 - EPONGE More informationQuantity required : 1 |
||||||
|
13 |
NUMBER PLATE LIGHT "PIAGGIO GENUINE PART" COMMON TO THE MOTO APRILIA + MOTO-GUZZI RANGE -85256R- More informationQuantity required : 1 |
||||||
|
13 |
894566 - DOUILLE More informationQuantity required : 1 |
||||||
|
14 |
894943 - INDICATEUR DIRECTION DROITE More informationQuantity required : 1 |
||||||
|
14 |
894945 - INDICATEUR DIRECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/9/img/71899.JPG)
14 |
AP8150522 - VITE TCB M4X16 INOX More informationQuantity required : 1 |
||||||
|
15 |
894944 - INDICATEUR DIRECTION GAUCHE More informationQuantity required : 1 |
||||||
|
15 |
894946 - INDICATEUR DIRECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
15 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/1/img/71801.jpg)
16 |
NUMBER PLATE SUPPORT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI + MAXISCOOTER APRILIA -AP8149034- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/3/img/71913.jpg)
16 |
AP8152108 - VIS More informationQuantity required : 2 |
||||||
|
17 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.JPG)
17 |
AP8152181 - RONDELLE FER PLATE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
18 |
LIGHT BULB 12V/10W "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -181746- More informationQuantity required : 2 |
||||||
|
18 |
AP8152108 - VIS More informationQuantity required : 3 |
||||||
|
18 |
AP8127489 - LAMPE RY10W 12V More informationQuantity required : 2 |
||||||
|
19 |
894899 - SUPPORT PLAQUE More informationQuantity required : 1 |
||||||
|
19 |
894657 - BOUCHON More informationQuantity required : 1 |
||||||
|
20 |
AP8150522 - VITE TCB M4X16 INOX More informationQuantity required : 1 |
||||||
|
21 |
AP8112600 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
22 |
AP8117258 - EPONGE More informationQuantity required : 1 |
||||||
|
23 |
858868 - CABLAGE FEU AR More informationQuantity required : 1 |
