Vehicle Exploded View - MOTO-GUZZI NORGE 850 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

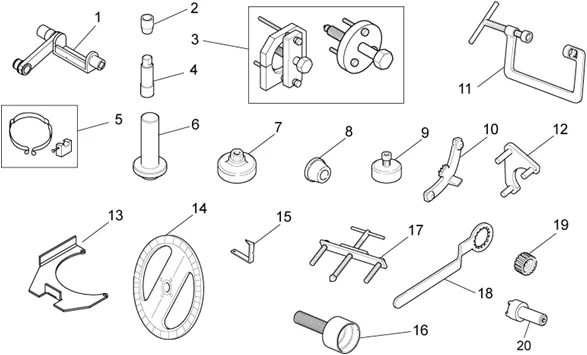

Moteur : 34.58 SPECIFIC TOOLS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/506/Norge_850_2007_34.58.PNG)
1 |
020677Y - ATT.TENSIONE CINGHIA ALTERNATORE More informationQuantity required : 1 |
||||||
|
2 |
GU05911730 - CONE D'INTROD.COUVERCLE AVANT More informationQuantity required : 1 |
||||||
|
3 |
GU05912530 - OUVERTURE BOITE DE VITESSES More informationQuantity required : 1 |
||||||
|
4 |
GU05901930 - CLEF BOUGIE More informationQuantity required : 1 |
||||||
|
5 |
GU05928030 - COLLIER DE SERRAGE PISTON More informationQuantity required : 1 |
||||||
|
6 |
GU05927230 - JET DE MONTAGE JOINT DISTR. More informationQuantity required : 1 |
||||||
|
7 |
GU01929100 - COPERCHIO COPPA E FILTRO More informationQuantity required : 1 |
||||||
|
8 |
GU12912000 - OUT.MONT.BRIDE VOLANT More informationQuantity required : 1 |
||||||
|
9 |
GU14927100 - OUT.MONT.JOINT BRIDE VOLANT More informationQuantity required : 1 |
||||||
|
10 |
GU12911801 - OUT.BLOCAGE VOL./COUR.D'EMAR. More informationQuantity required : 1 |
||||||
|
11 |
GU10907200 - OUT.MONT./DEM.SOUPAPES More informationQuantity required : 1 |
||||||
|
12 |
GU14927300 - OUT.MAIN.ENGRENAGE ARBRE CAMES More informationQuantity required : 1 |
||||||
|
13 |
GU05902530 - SUPPORT POUR CARTER VITESSES More informationQuantity required : 1 |
||||||
|
16 |
GU19927100 - OUT.MONT.JOINT BRIDE VOLANT More informationQuantity required : 1 |
||||||
|
17 |
GU12913600 - OUT.MONT.BRIDE VOLANT More informationQuantity required : 1 |
||||||
|
18 |
GU30912810 - OUT.BLOCAGE CORP INT.EMBRAYAGE More informationQuantity required : 1 |
||||||
|
19 |
GU30906510 - OUTIL DE MONTAGE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
20 |
GU14912603 - CLE More informationQuantity required : 1 |
