Vehicle Exploded View - MOTO-GUZZI NORGE 850 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

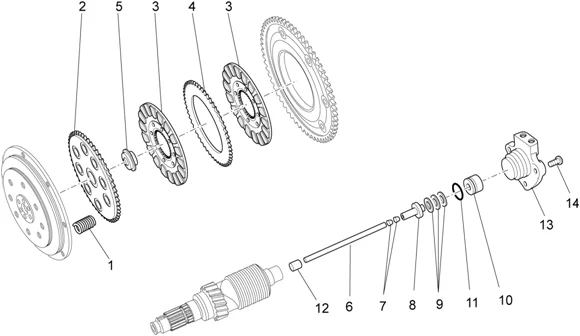

Moteur : 34.49 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/506/Norge_850_2007_34.49.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/4/5/9/img/128459.jpg)
1 |
CLUTCH PLATE SPRING "PIAGGIO GENUINE PART" 850-1200 NORGE, GRISO, BREVA, 1100 V11, 1200 SPORT, 840 BELLAGIO -GU04084100- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/5/img/129165.jpg)
1 |
CLUTCH SPRING "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 SPORT, CALIFORNIA, GRISO, BREVA, 850 BREVA, NORGE, V10, V11, STRADA, LE-MANS, BELLAGIO -GU13084100- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/3/7/img/130537.jpg)
2 |
CLUTCH DISC "PIAGGIO GENUINE PART" MOTO-GUZZI BREVA , BELAGIO, NORGE, SPORT, V10, V11 -GU30082900- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/4/9/9/img/125499.jpg)
3 |
CLUTCH DISC "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 SPORT, CALIFORNIA, GRISO, BREVA, 850 BREVA, NORGE, V10, V11, STRADA, LE-MANS, BELLAGIO -GU050844305- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/1/8/img/129118.jpg)
4 |
CLUTCH DISC- INTERMEDIATE "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU12082300- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/4/5/8/img/128458.jpg)
5 |
CLUTCH RELEASE BEARING "PIAGGIO GENUINE PART" MOTO-GUZZI SPORT, BREVA, GRISO, NORGE, V11, BELLAGIO -GU04082800- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/5/6/8/img/128568.jpg)
6 |
CLUTCH PUSH ROD "PIAGGIO GENUINE PART" MOTO-GUZZI BELLAGIO, SPORT, BREVA, GRISO, NORGE -GU05085730 - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/9/6/img/129196.jpg)
7 |
GU14085900 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/0/7/img/125107.jpg)
8 |
CLUTCH INNER BODY "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 SPORT, CALIFORNIA, GRISO, BREVA, 850 BREVA, NORGE, V10, V11, STRADA, LE-MANS, BELLAGIO -GU14086000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/0/1/7/img/98017.jpg)
9 |
CLUTCH THRUST BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -2A000376- More informationQuantity required : 1 |
||||||
10 |
GU04086100 - CYLINDRE COMMANDE EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/0/img/132220.jpg)
11 |
GU90706170 - JOINT TORIQUE 17,13X2,62 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/6/5/3/img/128653.jpg)
12 |
GU05217630 - BAGUE More informationQuantity required : 1 |
||||||
|
13 |
GU05086330 - CYLINDRE COMM.EMBR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
14 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 3 |
