Vehicle Exploded View - MOTO-GUZZI NORGE 850 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

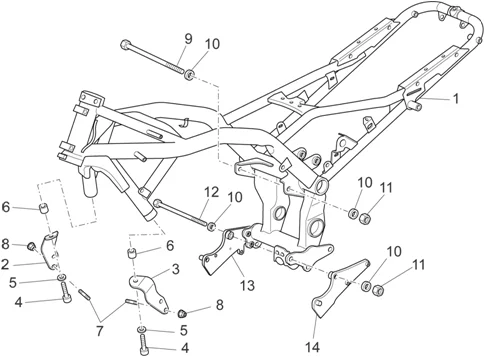

Chassis : 33.01 CHASSIS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/506/Norge_850_2007_33.01.PNG)
1 |
977700 - TELAIO VERNICIATO NORGE More informationQuantity required : 1 |
||||||
|
2 |
GU05421430 - PLAQUE D. More informationQuantity required : 1 |
||||||
|
3 |
GU05421530 - PLAQUE G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/7/8/img/73578.jpg)
4 |
GU98682650 - VIS M12X50 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/6/5/4/img/130654.jpg)
5 |
GU30217900 - RONDELLE 13X18X1,7 More informationQuantity required : 2 |
||||||
|
6 |
GU91181215 - ENTRETOISE 12X35X14 More informationQuantity required : 2 |
||||||
|
7 |
977809 - PRIGIONIERO 10X38 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
8 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 4 |
||||||
|
9 |
AP8221307 - PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/9/img/132689.JPG)
10 |
GU95008313 - RONDELLE 13X24X2,5 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/4/img/71884.jpg)
11 |
AP8150432 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
|
12 |
AP8221227 - PIVOT M12X270 More informationQuantity required : 1 |
||||||
|
13 |
977806 - PIASTRA SUPP CAVAL DX More informationQuantity required : 1 |
||||||
|
14 |
977805 - PIASTRA SUPP CAVAL SX More informationQuantity required : 1 |
