Vehicle Exploded View - MOTO-GUZZI NORGE 850 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

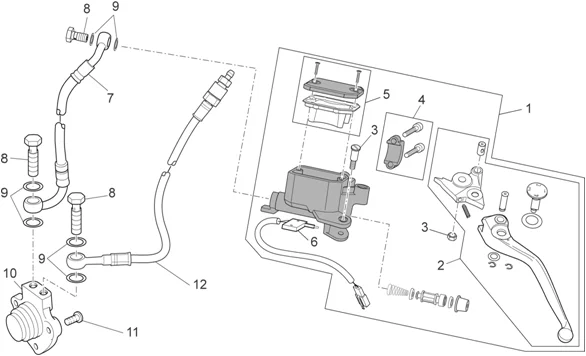

Chassis : 33.25 COMMANDE EMBRAYAGE CPL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/506/Norge_850_2007_33.25.PNG)
1 |
CLUTCH CONTROL MASTER CYLINDER "PIAGGIO GENUINE PART" MOTO-GUZZI BELLAGIO, BREVA, GRISO, NORGE, STELVIO/APRILIA 1000 CAPONORD, 1000 FUTURA -978607 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/8/7/2/img/100872.jpg)
2 |
CLUTCH LEVER- "PIAGGIO GENUINE PART" MOTO-GUZZI 850-1200 NORGE, BREVA, GRISO, 940 BELLAGIO, 1200 SPORT, STELVIO -981046- More informationQuantity required : 1 |
||||||
|
2 |
CLUTCH LEVER- "PIAGGIO GENUINE PART" APRILIA CAPONORD 1000 2001>2007 / MOTO GUZZI BREVA 1200 2005>2007, GRISO 850-1100-1200 2005>2017, NORGE 850-1200 2006>2008 -AP8118659- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/9/7/6/img/140976.jpg)
3 |
SCREW - FOR RIGHT/LEFT LEVER FASTENING "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD, RSV-2, TUONO V2, FUTURA -2B003040- More informationQuantity required : 1 |
||||||
|
3 |
SCREW - FOR RIGHT/LEFT LEVER FASTENING "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD, RSV-2, TUONO V2, FUTURA -2B003040- More informationQuantity required : 1 |
||||||
|
4 |
AP8113993 - CAVALIER; More informationQuantity required : 1 |
||||||
|
5 |
AP8113997 - BOUCHON RESERVOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/3/9/img/71339.jpg)
6 |
MICROSWITCH "PIAGGIO GENUINE PART" MOTO-GUZZI GRISO, NORGE, BREVA, STELVIO/APRILIA 1000 CAPONORD -AP8113998- More informationQuantity required : 1 |
||||||
|
7 |
GU05606530 - TUYAU EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/5/2/img/71652.jpg)
8 |
BRAKE HOSE BANJO "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE MOTO-GUZZI -AP8133594- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
9 |
AP8113004 - RONDELLE More informationQuantity required : 6 |
||||||
|
10 |
GU05086330 - CYLINDRE COMM.EMBR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
11 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 3 |
||||||
|
12 |
FLOAT CHAMBE CLUTCH PIPE "PIAGGIO GENUINE PART" MOTO-GUZZI NORGE, STELVIO, BELLAGIO, BREVA, GRISO -GU05606630- More informationQuantity required : 1 |
