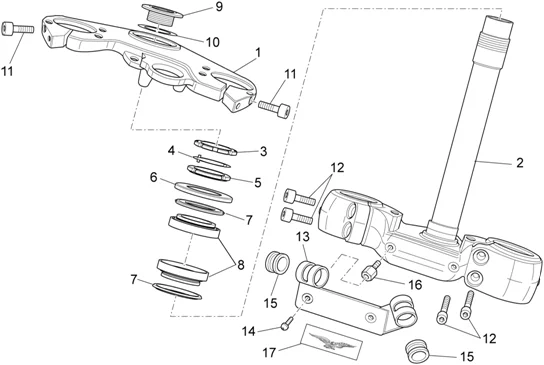

Chassis : 33.07 DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/506/Norge_850_2007_33.07.PNG)
1 |
GU05493130 - PLAQUE SUP.FOURCHE More informationQuantity required : 1 |
||||||
|
2 |
GU05494030 - BASE AVEC TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/5/img/71525.jpg)
3 |
NUT - FOR STEERING COLUMN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA / MOTO-GUZZI -AP8123643- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/0/img/71450.jpg)
4 |
STEERING LOCK WASHER "PIAGGIO GENUINE PART" APRILIA 1000 RSV, TUONO/MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO -AP8121207- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/4/img/71524.JPG)
5 |
AP8123642 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/6/img/71526.jpg)
6 |
AP8123644 - ANNEAU PARE-POUSS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/3/img/71523.JPG)
7 |
AP8123641 - ANNEAU PARE-POUSS. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/0/8/2/img/176082.JPG)
8 |
2B007853 - THRUST BALL BEARING More informationQuantity required : 2 |
||||||
|
8 |
2B007853 - THRUST BALL BEARING More informationQuantity required : 2 |
||||||
|
8 |
2B007853 - THRUST BALL BEARING More informationQuantity required : 2 |
||||||
|
8 |
2B007853 - THRUST BALL BEARING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/4/9/img/71449.JPG)
9 |
AP8121205 - DOUILLE FX. PL. SUP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/6/img/71976.jpg)
10 |
STEM PLUG WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI + APRILIA -AP8152384- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
11 |
600123 - BOULON M8X30 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/2/img/67332.jpg)
12 |
SCREW - (8X25) FOR CALIPER OR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -597150- More informationQuantity required : 4 |
||||||
|
13 |
977693 - PIASTRINA FERMO TUBI FRENO ANT More informationQuantity required : 1 |
||||||
|
14 |
GU98350215 - VIS More informationQuantity required : 2 |
||||||
|
15 |
GU03658201 - BAGUE More informationQuantity required : 2 |
||||||
|
16 |
977618 - VITE FISSAGGIO FIANCATE More informationQuantity required : 2 |
||||||
|
17 |
GU01517700 - "DECALCO ""AQUILIA""" More informationQuantity required : 1 |
