Vehicle Exploded View - MOTO-GUZZI NORGE 850 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

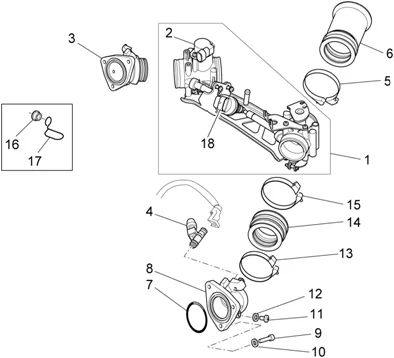

Moteur : 34.57 CORPS À PAPILLON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/506/Norge_850_2007_34.57.PNG)
1 |
GU05112530 - CORPE PAPILLON COMPL. More informationQuantity required : 1 |
||||||
|
2 |
GU05112830 - POTENTIOMETRE More informationQuantity required : 1 |
||||||
|
3 |
GU05115030 - PIPE D. More informationQuantity required : 1 |
||||||
|
4 |
GU05115730 - KIT INJECTEUR COMPLET More informationQuantity required : 2 |
||||||
|
5 |
GU93305058 - COLLIER More informationQuantity required : 2 |
||||||
|
6 |
GU05114430 - MANCHON D'ASPIRATION More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/4/4/img/132244.jpg)
7 |
GU90706461 - JOINT TORIQUE 46,04X3,53 More informationQuantity required : 2 |
||||||
|
8 |
GU05115031 - PIPE G. More informationQuantity required : 1 |
||||||
|
9 |
GU98682325 - VIS TCEI M6X25 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
10 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 6 |
||||||
|
11 |
GU98350310 - VIS M6X20 More informationQuantity required : 2 |
||||||
|
12 |
GU95100116 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/1/2/img/132612.jpg)
13 |
GU93305057 - COLLIER 59,5/55 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/4/4/0/img/101440.jpg)
14 |
INTAKE HOSE "PIAGGIO GENUINE PART" MOTO-GUZZI -GU01114390- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/1/5/img/132615.jpg)
15 |
GU93305061 - COLLIER 61/65,5 More informationQuantity required : 2 |
||||||
|
16 |
GU31576183 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/6/img/71396.JPG)
17 |
AP8120428 - GUIDE-CABLE SUP. More informationQuantity required : 1 |
||||||
|
18 |
896540 - KIT MOTEUR REGLAGE RALENTI More informationQuantity required : 1 |
