Vehicle Exploded View - MOTO-GUZZI NORGE 850 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

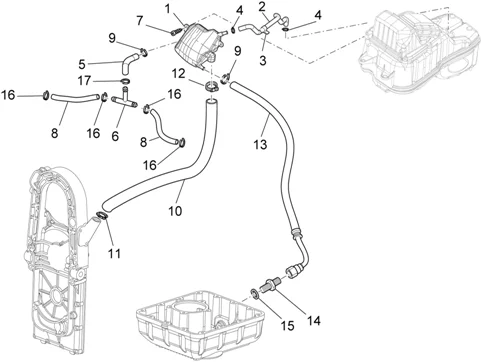

Chassis : 33.27 INSTALLATION BLOW-BY
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/506/Norge_850_2007_33.27.PNG)
1 |
883495 - SERBATOIO BLOW-BY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/6/1/8/img/128618.JPG)
2 |
GU05157430 - TUYAU RENIFLARD RADIATEUR More informationQuantity required : 1 |
||||||
|
3 |
890721 - COLLIER SERR. TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/2/img/71182.jpg)
4 |
AP8102520 - COLLIER SERR. TUBE More informationQuantity required : 2 |
||||||
|
5 |
GU05159630 - TUYAU RENIFLARD RADIATEUR More informationQuantity required : 1 |
||||||
|
6 |
GU95960609 - RACCORD 3 VOIES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
7 |
AP8150509 - VIS TARAUD 5X14 More informationQuantity required : 2 |
||||||
|
8 |
GU00823955080 - TUBO TOA 175/70 8X13 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/3/img/71153.jpg)
9 |
AP8101586 - COLLIER CLIC More informationQuantity required : 2 |
||||||
|
10 |
GU05157630 - TUYAU RENIFLARD RADIATEUR More informationQuantity required : 1 |
||||||
|
11 |
AP8101588 - COLLIER CLIC More informationQuantity required : 1 |
||||||
|
12 |
GU93306018 - COLLIER 17X29X8 More informationQuantity required : 1 |
||||||
|
13 |
2B001409 - TUYAU More informationQuantity required : 1 |
||||||
|
14 |
GU01161331 - REDUCTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/0/img/73410.jpg)
15 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 NORGE, SPORT, BREVA, GRISO, STELVI, 1400 CALIFORNIA, AUDACE/APRILIA 750 DORSODURO, SHIVER, 1200 CAPONORD -GU01154230- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/0/img/72130.jpg)
16 |
AP8201358 - COLLIER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/8/img/71198.jpg)
17 |
AP8102765 - COLLIER CLIC, BLANC More informationQuantity required : 1 |
