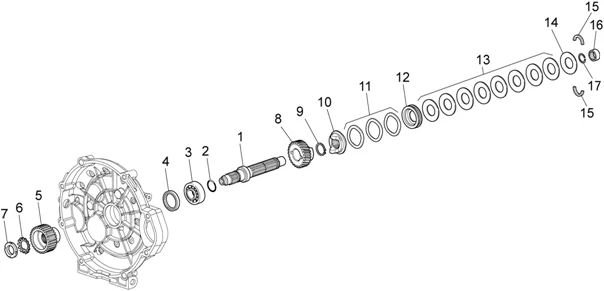

Moteur : 34.54 ARBRE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/506/Norge_850_2007_34.54.PNG)
1 |
GU05210731 - ARBRE EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/4/img/132224.jpg)
2 |
O'RING GASKET (20,24X2,62) FOR CLUTCH SHAFT Ø20,24X2,62 "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -GU90706203- More informationQuantity required : 1 |
||||||
|
3 |
GU92201226 - ROULEMENT A BILLES 25X52X15 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/8/6/img/132186.jpg)
4 |
GASKET FOR CLUTCH SHAFT (35X47X7) "PIAGGIO GENUINE PART" MOTO-GUZZI BREVA, BELLAGIO, GRISO, NORGE, V7, NEVADA, SPORT -GU90403549- More informationQuantity required : 1 |
||||||
|
5 |
GU05081830 - PIGNON EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/0/img/132700.jpg)
6 |
GU95028022 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/3/0/img/132630.jpg)
7 |
RING (REAR) FOR CLUTCH SHAFT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU93601022- More informationQuantity required : 1 |
||||||
|
8 |
976137 - INGR.TRASM.PRIM.ASSE FRIZ.Z 29/45 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/3/1/img/132131.jpg)
9 |
GU90271125 - ANNEAU ELASTIQUE 25X2 More informationQuantity required : 1 |
||||||
|
10 |
GU05211231 - MANCHON More informationQuantity required : 1 |
||||||
|
11 |
GU95129340 - RONDELLE More informationQuantity required : 3 |
||||||
|
12 |
GU05211030 - DISQUE More informationQuantity required : 1 |
||||||
|
13 |
GU05211530 - RESSORT A GODET More informationQuantity required : 8 |
||||||
|
14 |
GU05211630 - DISQUE More informationQuantity required : 1 |
||||||
|
15 |
GU12211700 - DEMI-CLAVETTES More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/1/5/img/132415.jpg)
16 |
ROLLER BEARING 20X28X13 FOR CLUTCH SHAFT "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU92232028- More informationQuantity required : 1 |
||||||
|
17 |
GU90272028 - ANNEAU ELASTIQUE 28X30,1 More informationQuantity required : 1 |
