Vehicle Exploded View - MOTO-GUZZI NORGE 850 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

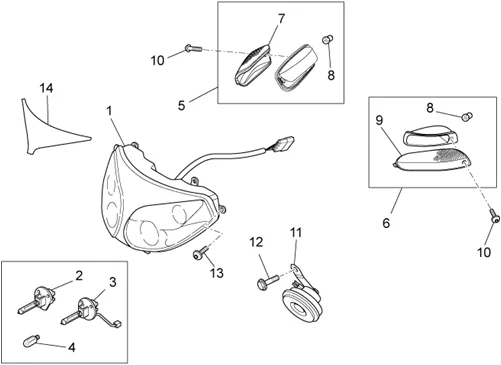

Chassis : 33.37 FEU AV/KLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/506/Norge_850_2007_33.37.PNG)
1 |
883816 - PROIETTORE ANT NORGE 4V More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/1/img/67171.jpg)
2 |
LIGHT BULB 12V 55W H1 "PIAGGIO GENUINE PART" MP3, X10, PORTER, HEXAGON/MOTO-GUZZI 850-1200 NORGE/GILERA GP 800 -580141- More informationQuantity required : 1 |
||||||
|
3 |
294278 - AMPOULE 12V 55W H3 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
4 |
LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225- More informationQuantity required : 1 |
||||||
|
5 |
AP8127684 - INDICATORE DIREZIONE POST.SX More informationQuantity required : 1 |
||||||
|
6 |
AP8127683 - INDICATORE DIREZIONE POST.DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/2/2/img/71622.jpg)
7 |
LENS FOR FLASHER-REAR- RIGHT- "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2/MOTO-GUZZI 850-1200 NORGE -AP8127701- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
8 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/2/3/img/71623.jpg)
9 |
LENS FOR FLASHER-REAR- LEFT- "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2/MOTO-GUZZI 850-1200 NORGE -AP8127702- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/3/img/71893.jpg)
10 |
AP8150493 - VIS More informationQuantity required : 2 |
||||||
|
11 |
GU05743730 - KLAXON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
12 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152285- More informationQuantity required : 1 |
||||||
|
13 |
GU98325316 - VIS More informationQuantity required : 6 |
||||||
|
14 |
978571 - DECALCO PER FARO More informationQuantity required : 1 |
