Vehicle Exploded View - MOTO-GUZZI NORGE 850 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

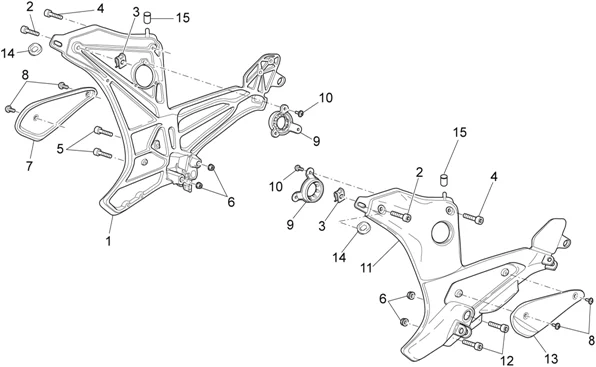

Chassis : 33.05 REPOSE-PIEDS II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/506/Norge_850_2007_33.05.PNG)
1 |
RIGHT PLATE "PIAGGIO GENUINE PART" MOTO-GUZZI BREVA, NORGE, SPORT - BLACK -GU05443530NA- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/1/4/img/133214.JPG)
2 |
GU98692430 - VIS M8X30 More informationQuantity required : 2 |
||||||
|
3 |
GU01576530 - ECROU COLLIER M8X1,25 More informationQuantity required : 2 |
||||||
|
4 |
GU98692425 - VIS M8X25 More informationQuantity required : 2 |
||||||
|
5 |
GU98680440 - VIS TCEI M8X40 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
6 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300- More informationQuantity required : 4 |
||||||
|
7 |
GU05446930 - PROTECT.DTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
8 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339- More informationQuantity required : 4 |
||||||
|
9 |
GU05446431 - BAGUE More informationQuantity required : 2 |
||||||
|
10 |
GU98350210 - VIS TBEI M5X10 More informationQuantity required : 6 |
||||||
|
11 |
LEFT PLATE "PIAGGIO GENUINE PART" MOTO-GUZZI BREVA, NORGE, SPORT NOIR -GU05446030NA- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/7/img/71817.jpg)
12 |
AP8150046 - VIS More informationQuantity required : 2 |
||||||
|
13 |
GU05447430 - PROTECT.GCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/2/img/72272.jpg)
14 |
AP8220162 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
15 |
AP8220526 - CAOUTCHOUC More informationQuantity required : 2 |
