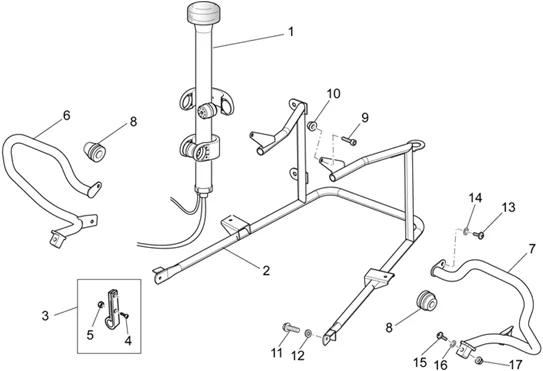

Chassis : 33.76 MOTORIZED STROBO KIT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/508/Norge_1200_IE_1200_2006-2008_33.76.PNG)
1 |
883331 - KIT PIANTONE (CENTR+PIANTONE) Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
883365 - TELAIETTO POSTERIORE COMPLETO Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GU03658330 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
GU98257410 - VIS Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
GU92630104 - ECROU M4X0,7 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
883364 - TUBO PARABORSE DX CON PI Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
883363 - TUBO PARABORSE SX CON PI Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
GU80596810 - PASSACAVO A CAPPUCCIO Plus d'informationsQuantité requise : 4 |
||||||
|
9 |
GU98680480 - VIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/3/3/img/132533.jpg)
10 |
ECROU BRIDE (8X1.25) ORIGINE PIAGGIO COMMUN A LA GAMME -GU92650138 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
11 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152278 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
12 |
RONDELLE (6,4X10X,7) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152105 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/5/img/67255.jpg)
13 |
VIS BTR TETE BOMBEE (8X16) ORIGINE PIAGGIO COMMUN A LA GAMME -582428 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
14 |
RONDELLE (8,4X13X0,8) ORIGINE PIAGGIO COMMUN A LA GAMME -GU14615901 Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
GU98370850 - VIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/6/img/132666.jpg)
16 |
RONDELLE PLATE (8,4X14,57X1,6) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95005308 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
17 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152300 Plus d'informationsQuantité requise : 2 |
