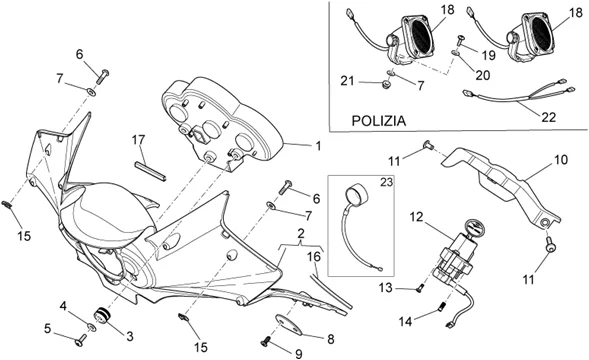

Chassis : 33.29 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/508/Norge_1200_IE_1200_2006-2008_33.29.PNG)
1 |
883568 - CRUSCOTTO NORGE MPH Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
883567 - CRUSCOTTO KM NORGE * Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
Support tableau de bord |
||||||
|
2 |
977852 - PLANCIA COMPLETA PARAB ELETTRICO Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
977857 - PLANCIA CRUSCOTTO NORGE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
3 |
CAOUTCHOUC SILENBLOC ORIGINE APRILIA/MOTO GUZZI COMMUN A LA GAMME -AP8220150 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/7/img/71847.jpg)
4 |
RONDELLE PLATE (5X20X1.5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150255 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
5 |
VIS CRUCIFORME (5X15) TARAUD ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150509 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/3/img/71893.jpg)
6 |
VIS BTR TETE BOMBEE (4X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150493 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/1/img/71771.jpg)
7 |
RONDELLE NYLON (4X9X0.8)) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8144565 Plus d'informationsQuantité requise : 12 |
||||||
|
8 |
977150 - PIASTRA FERMA PULSANTE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
9 |
VIS CRUCIFORME (2.9X12) TARAUD POUR PLASTIQUE INOX ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150421 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
977670 - COPERTURA MANUBRIO COMPLETA Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
977670F2 - COPERTURA MANUBRIO GRIGIO EXCALIBUR Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
97857200F2 - COPERTURA ANT. MANUBRIO GRIGIA EXCALIBUR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
11 |
VIS BTR TETE BOMBEE (5X9) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO -AP8152339 Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
GU05782530 - BLOC DEMARREUR-BLOC Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
13 |
VIS BTR (8X30) ORIGINE PIAGGIO COMMUN A LA GAMME -600123 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/1/img/71931.jpg)
14 |
VIS A ARRACHEMENT/AUTO-CASSANTE BTR (8X28) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152238 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
15 |
ECROU TOLE (M4) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102381 Plus d'informationsQuantité requise : 6 |
||||||
|
16 |
978589 - GUARNIZIONE PER PLANCIA SERBATOIO Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/7/9/3/img/101793.jpg)
17 |
CAOUTCHOUC ANTI-VIBRATION COMPTEUR ORIGINE MOTO GUZZI NORGE, V11 -GU01573960 Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
883387 - *ALTOPARLANTE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/2/img/133052.jpg)
19 |
VIS BTR TETE BOMBEE (4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98370412 Plus d'informationsQuantité requise : 4 |
||||||
|
20 |
GU95008204 - RONDELLE 4,3X8X0,5 Plus d'informationsQuantité requise : 4 |
||||||
|
21 |
GU92630104 - ECROU M4X0,7 Plus d'informationsQuantité requise : 4 |
||||||
|
22 |
883400 - CAVO SDOPPIATORE ALTOPARLANTI Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/8/8/6/img/100886.jpg)
23 |
ANTENNE DISPOSITIF ANTI-DEMARRAGE ORIGINE MOTO GUZZI BREVA, NORGE, STELVIO -981087 Plus d'informationsQuantité requise : 1 |
