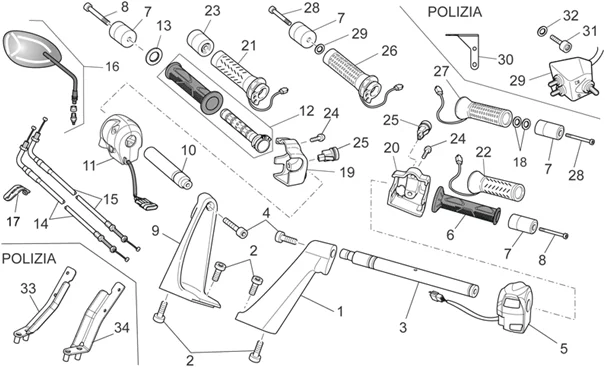

Chassis : 33.31 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/508/Norge_1200_IE_1200_2006-2008_33.31.PNG)
1 |
Demi-guidon |
||||||
|
2 |
GU98692425 - VIS M8X25 Plus d'informationsQuantité requise : 6 |
||||||
|
3 |
GU05600930 - TUBE GUIDON G * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/1/4/img/133214.jpg)
4 |
VIS BTR (8X30) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98692430 Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
886229 - DEVIOLUCI SINISTRO * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/6/img/71366.jpg)
6 |
REVETEMENT DE POIGNEE GAUCHE ORIGINE APRILIA/MOTO GUZZI COMMUNA LAGAMME -AP8118579 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/2/9/img/71229.jpg)
7 |
EMBOUT DE GUIDON ORIGINE PIAGGIO COMMUN A LA GAMME APRILIA/ MOTO GUZZI -AP8104572 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/7/img/133157.jpg)
8 |
GU98680360 - VIS M6X60 Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
Demi-guidon |
||||||
|
10 |
GU05600230 - TUBE GUIDON D. Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
883542 - DISPOSITIF Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
893622 - DEVIATEUR FEUX DTE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/5/img/73415.jpg)
12 |
REVETEMENT DE POIGNEE DROITE AVEC MANCHON ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU01603480 Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
977679 - ROSETTA NYL 22X34X2 Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
977677 - TRASMISSIONE COMANDO GAS Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
978136 - TRASMISSIONE RITORNO GAS MAN RISC Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/9/6/8/img/99968.jpg)
16 |
PAIRE DE RETROVISEURS (FU) ORIGINE PIAGGIO MOTO-GUZZI 1100-1200 BREVA 2005>, GRISO 2005>, 1200 NORGE 2006>, 1100 CALIFORNIA 2006>2011, 750 V7 2009>, NEVADA 2009>, 850 V9 2016>, 940 BELLAGIO -97702R Plus d'informationsQuantité requise : 2 |
||||||
|
16 |
PAIRE DE RETROVISEURS (FU) ORIGINE PIAGGIO MOTO-GUZZI 1100-1200 BREVA 2005>, GRISO 2005>, 1200 NORGE 2006>, 1100 CALIFORNIA 2006>2011, 750 V7 2009>, NEVADA 2009>, 850 V9 2016>, 940 BELLAGIO -97702R Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/8/9/5/img/101895.jpg)
17 |
COLLIER SERRE CABLE 46 MM ORIGINE PIAGGIO COMMUN A LA GAMME MOTO GUZZI -GU01609630 Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
GU03609600 - COLLIER L36 MM Plus d'informationsQuantité requise : 4 |
||||||
|
18 |
GU05604630 - DIST 6X21X4 Plus d'informationsQuantité requise : 3 |
||||||
|
19 |
977628 - BRACCIALETTO DX CON PULSANTE Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
977630 - BRACCIALETTO DX Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
977629 - BRACCIALETTO SX CON PULSANTE Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
977631 - BRACCIALETTO SX Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
977906 - MANOPOLA DX RISCALDATA Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
AP8706527 - MANOPOLA RISCALDATA SX Plus d'informationsQuantité requise : 1 |
||||||
|
23 |
977739 - PESO ANTIVIBRANTE Plus d'informationsQuantité requise : 1 |
||||||
|
24 |
GU98612325 - VIS M6X25 Plus d'informationsQuantité requise : 2 |
||||||
|
25 |
977740 - PULSANTE N.A. Plus d'informationsQuantité requise : 2 |
||||||
|
26 |
977906 - MANOPOLA DX RISCALDATA Plus d'informationsQuantité requise : 1 |
||||||
|
27 |
AP8706527 - MANOPOLA RISCALDATA SX Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/5/img/71865.jpg)
28 |
VIS BTR (6X70) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150342 Plus d'informationsQuantité requise : 2 |
||||||
|
29 |
883332 - *DISPOSITIVO SUPPL PA 3 Plus d'informationsQuantité requise : 1 |
||||||
|
30 |
883359 - SUPPORTO PTT Plus d'informationsQuantité requise : 1 |
||||||
|
31 |
GU01498430 - VIS SPECIALE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
32 |
RONDELLE (6,4X10X,7) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152105 Plus d'informationsQuantité requise : 2 |
||||||
|
33 |
883310 - SUPPORTO MANUBRIO DX CON PI Plus d'informationsQuantité requise : 1 |
||||||
|
34 |
883311 - SUPPORTO MANUBRIO SX CON PI Plus d'informationsQuantité requise : 1 |
