Eclatés de véhicule - MOTO GUZZI NORGE 1200 IE 1200 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

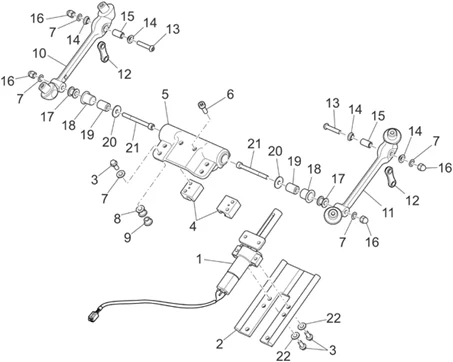

Chassis : 33.19 PARE-BRISE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/508/Norge_1200_IE_1200_2006-2008_33.19.PNG)
1 |
978060 - MOTEUR + GROUPE CABLES Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
977610 - PROFILO GUIDA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
3 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152278 Plus d'informationsQuantité requise : 6 |
||||||
|
4 |
977638 - SUPPORT Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
977609 - PIASTRA SCORREVOLE Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
GU98682310 - VIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
7 |
RONDELLE ELASTIQUE (6.4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -GU03013800 Plus d'informationsQuantité requise : 8 |
||||||
|
8 |
978152 - SILENBLOC Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
9 |
DOUILLE EN T INTERIEUR 5 MM ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121795 Plus d'informationsQuantité requise : 4 |
||||||
|
10 |
977606 - SUPPORTO PARABREZZA DX Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
977607 - SUPPORTO PARABREZZA SX Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
977608 - BIELLETTA Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
GU98370630 - VIS M6X30 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/7/1/img/71071.jpg)
14 |
DOUILLE DE PARE BRISE ORIGINE PIAGGIO 800 GP 2007>2011 -977645 Plus d'informationsQuantité requise : 4 |
||||||
|
15 |
977644 - ENTRETOISE Plus d'informationsQuantité requise : 2 |
||||||
|
16 |
GU92787006 - ECROU Plus d'informationsQuantité requise : 4 |
||||||
|
17 |
977881 - DISTANZIALE Plus d'informationsQuantité requise : 2 |
||||||
|
18 |
977641 - BOCCOLA 14X16X16 COL 22X1 Plus d'informationsQuantité requise : 2 |
||||||
|
19 |
977646 - DISTANZIALE 6,2X14X19 Plus d'informationsQuantité requise : 2 |
||||||
|
20 |
GU91120620 - ENTRETOISE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/7/img/133157.jpg)
21 |
GU98680360 - VIS M6X60 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
22 |
RONDELLE (6,4X10X,7) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152105 Plus d'informationsQuantité requise : 2 |
