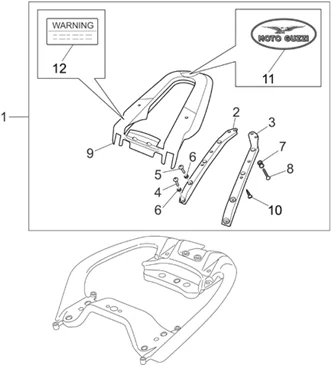

Chassis : 33.27 PORTE-BAGAGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/508/Norge_1200_IE_1200_2006-2008_33.27.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/1/3/4/img/108134.jpg)
1 |
PORTE BAGAGE ORIGINE PIAGGIO MOTO-GUZZI 850-1200 BREVA, NORGE, 1200 SPORT -GU05677230 Plus d'informationsQuantité requise : 1 |
||||||
2 |
GU05466630 - SUPPORTO DX PORTAPACCHI Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GU05466631 - SUPPORTO SX PORTAPACCHI Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/1/6/img/133216.jpg)
4 |
VIS BTR (8X30) PORTE BAGAGE ORIGINE PIAGGIO MOTO-GUZZI 1200 GRISO, NORGE, STELVIO -GU98700430 Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
VIS BTR (8X30) PORTE BAGAGE ORIGINE PIAGGIO MOTO-GUZZI 1200 GRISO, NORGE, STELVIO -GU98700430 Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
RONDELLE CANNELEE (8.4X13) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152154 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/9/8/img/71498.jpg)
7 |
DOUILLE BRAS OSCILLANT ORIGINE APRILIA COMMUN A LA GAMME -AP8121890 Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
GU98250635 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
GU05468230 - COPERCHIO PORTAPACCHI Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
10 |
VIS CRUCIFORME (5X15) TARAUD ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150509 Plus d'informationsQuantité requise : 4 |
||||||
|
11 |
977303 - TARGHETTA AQUILA DX (ROSSO/FIL ORO) Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
AP8157631 - PLAQUETTE Plus d'informationsQuantité requise : 1 |
