Eclatés de véhicule - MOTO GUZZI NORGE 1200 IE 1200 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

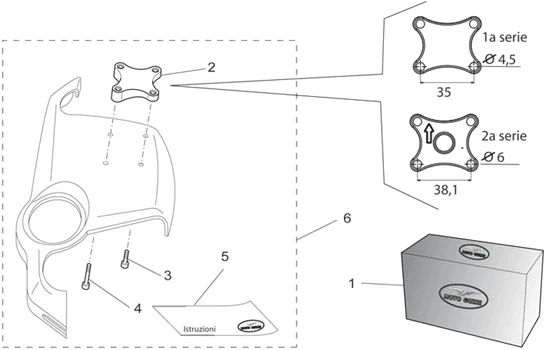

Chassis : 33.30 NAVIGATEUR GPS TOMTOM RIDER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/508/Norge_1200_IE_1200_2006-2008_33.30.PNG)
1 |
*TOM TOM RIDER EU |
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
2 |
977132 - SUPPORTO NAVIGATORE GPS Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
978574 - SUPPORTO NAVIGATORE GPS Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
977919 - VITE TSPCE ZN M3X16 ESLOK Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/1/6/img/68516.jpg)
3 |
VIS BTR TETE FRAISEE (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -825079 Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
977920 - VITE TSPCE ZN M3X20 ESLCK Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
GU98250525 - VIS M5X25 Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
977708 - KIT SUPPORTO NAVIGATORE Plus d'informationsQuantité requise : 1 |
