Eclatés de véhicule - MOTO GUZZI NORGE 1200 IE 1200 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

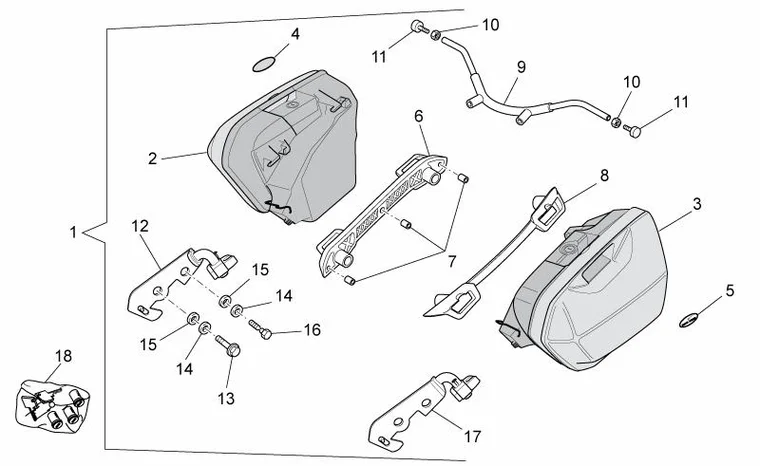

Chassis : 33.72 SIDE CASES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/508/Norge_1200_IE_1200_2006-2008_33.72.PNG)
1 |
88323300YA1 - *KIT BORSE NORGE PS Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
88323400YA1 - *BORSA LAT DX AZZURRO MEDIO POLIZIA Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
88323500YA1 - *BORSA LAT SX AZZURRO MEDIO POLIZIA Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
977303 - TARGHETTA AQUILA DX (ROSSO/FIL ORO) Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
977218 - TARGHETTA AQUILA SX (ROSSO/FIL ORO) Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
GU05485030 - FIXATION SUP DX VALISE LATERALE Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP8144629 - GOMMINO Plus d'informationsQuantité requise : 6 |
||||||
|
8 |
GU05486530 - FIXATION SUP SX VALISE LATERALE Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
GU05486830 - TRAVERSINO POST SUPPORTO VALIGIE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
AP8150333 - ECROU SERPRESS Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
AP8706329 - GOMMINO D:20 H:10 M6X20 Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
GU05485130 - ATTACCO INF DX VALIGIE LATERALI * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/5/img/67365.jpg)
13 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -598839 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
14 |
RONDELLE ELASTIQUE COURBE (6X12) ORIGINE PIAGGIO COMMUN A LA GAMME -658830 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
15 |
RONDELLE PLATE (6.6X18X1.6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150015 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/9/img/71919.jpg)
16 |
VIS A ARRACHEMENT/AUTO-CASSANTE TH (6X17) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152140 Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
GU05486630 - ATTACCO INF SX VALIGIE LATERALI * Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
978220 - KIT ROTORI CON COPPIA CHIAVI Plus d'informationsQuantité requise : 1 |
