Eclatés de véhicule - MOTO GUZZI NORGE 1200 IE 1200 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

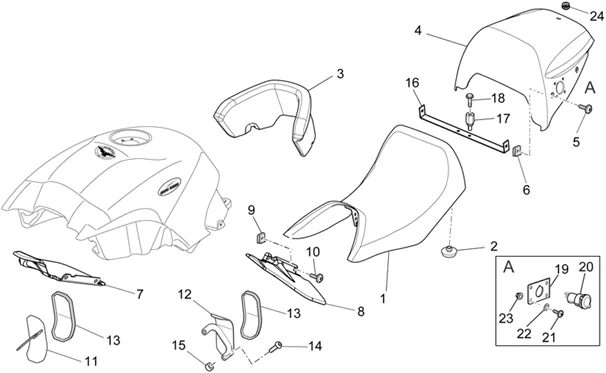

Chassis : 33.71 CARROSSERIE POLICE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/508/Norge_1200_IE_1200_2006-2008_33.71.PNG)
1 |
883323 - SELLA NORGE PS CON PI Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
GU32461810 - CAOUTCHOUC APPUI SELLE Plus d'informationsQuantité requise : 6 |
|||||||||
|
3 |
978074 - COPRISERBATOIO Plus d'informationsQuantité requise : 1 |
|||||||||
|
4 |
88331800YA1 - COPERCHIO POST. AZZURRO Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
5 |
VIS BTR DE CARENAGE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152302 Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
5 |
VIS BTR DE CARENAGE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -2B014101 Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
6 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375 Plus d'informationsQuantité requise : 4 |
|||||||||
|
7 |
883357 - PARACALORE SX Plus d'informationsQuantité requise : 1 |
|||||||||
|
8 |
883358 - PARACALORE DX Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/2/img/133052.jpg)
9 |
VIS BTR TETE BOMBEE (4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98370412 Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
10 |
ECROU TOLE (M4) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102381 Plus d'informationsQuantité requise : 4 |
|||||||||
|
11 |
977044 - PARAGINOCCHIO DX Plus d'informationsQuantité requise : 1 |
|||||||||
|
12 |
977045 - PARAGINOCCHIO SX Plus d'informationsQuantité requise : 1 |
|||||||||
|
13 |
GU18941750 - CAOUTCHOUC Plus d'informationsQuantité requise : 2 |
|||||||||
|
14 |
GU05025932 - VIS M6X50 Plus d'informationsQuantité requise : 4 |
|||||||||
|
15 |
GU91180720 - ENTRETOISE 7X10X22 Plus d'informationsQuantité requise : 4 |
|||||||||
|
16 |
977993 - FISS ANT CODONE Plus d'informationsQuantité requise : 1 |
|||||||||
|
17 |
978619 - DADO A COLONNA Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
18 |
VIS BRIDE TH (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152272 Plus d'informationsQuantité requise : 2 |
|||||||||
|
19 |
978208 - SUPP. PRESA ELETTRICA Plus d'informationsQuantité requise : 1 |
|||||||||
|
20 |
B063212 - PRISE Plus d'informationsQuantité requise : 1 |
|||||||||
|
21 |
GU98230518 - VIS Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/4/img/71844.jpg)
22 |
RONDELLE PLATE (5.5X15X1.6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150248 Plus d'informationsQuantité requise : 4 |
|||||||||
|
23 |
GU92630205 - ECROU Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/2/img/132572.jpg)
24 |
BOUCHON 15 MM ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU93180111 Plus d'informationsQuantité requise : 1 |
|||||||||
