Eclatés de véhicule - MOTO GUZZI NORGE 1200 IE 1200 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

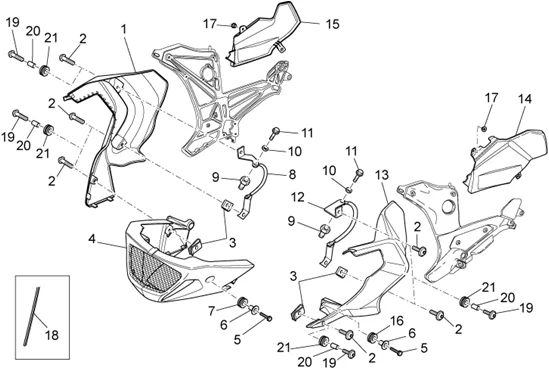

Chassis : 33.20 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/508/Norge_1200_IE_1200_2006-2008_33.20.PNG)
1 |
977110 - FIANCATA COPRIMOTORE DX GREZZO Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
97711000YA1 - FIANCATA COPRIMOTORE DX AZZURRO Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
97711000YG1 - FIANCATA COPRIMOTORE DX BRONZO Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
977110F2 - FIANCATA COPRIMOTORE DX GRIGIO EXCALIBUR Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
977110ND - FIANCATA COPRIMOTORE DX NERO GRAFITE * Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
977110Y01 - FIANCATA COPRIMOTORE DX ROSSO CORSA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
2 |
VIS BTR TETE BOMBEE (5X9) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO -AP8152339 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
3 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375 Plus d'informationsQuantité requise : 6 |
||||||
|
4 |
97772100YA1 - PUNTALE COMPLETO AZZURRO Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
97772100YG1 - PUNTALE COMPLETO BRONZO Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
977721F2 - PUNTALE COMPLETO GRIGIO EXCALIBUR Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
977721ND - PUNTALE COMPLETO NERO GRAFITE * Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
977721Y01 - PUNTALE COMPLETO ROSSO CORSA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
5 |
VIS BRIDE TH (8X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152287 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/7/img/72297.jpg)
6 |
DOUILLE EN T (8,5X10,7X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221128 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/7/img/71407.jpg)
7 |
CAOUTCHOUC SILENTBLOC ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120594 Plus d'informationsQuantité requise : 3 |
||||||
|
8 |
977619 - TELAIETTO DX FISS FIANCATA CON PI * Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
977618 - VITE FISSAGGIO FIANCATE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/4/7/img/132747.jpg)
10 |
RONDELLE ELASTIQUE (5.3X10X0.5) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95129100 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
11 |
VIS BRIDE TH (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152272 Plus d'informationsQuantité requise : 4 |
||||||
|
12 |
977623 - TELAIETTO SX FISS FIANCATA CON PI Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
977109 - FIANCATA COPRIMOTORE SX GREZZO Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
97710900YA1 - FIANCATA COPRIMOTORE SX AZZURRO Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
97710900YG1 - FIANCATA COPRIMOTORE SX BRONZO Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
977109F2 - FIANCATA COPRIMOTORE SX GRIGIO EXCALIBUR Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
977109ND - FIANCATA COPRIMOTORE SX NERO GRAFITE * Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
977109Y01 - FIANCATA COPRIMOTORE SX ROSSO CORSA Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
977113 - FIANCATINA POST SX Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
977966 - FIANCHETTO INF. POST SX Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
977114 - FIANCATINA POST DX Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
977967 - FIANCHETTO INF. POST DX Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
16 |
CAOUTCHOUC/ENTRETOISE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120030 Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
CAOUTCHOUC SILENTBLOC ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120594 Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
GU31576183 - ENTRETOISE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/3/3/4/img/101334.jpg)
18 |
JOINT PVC ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU00823931080 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
19 |
VIS BRIDE BTR (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152298 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/9/9/img/132299.jpg)
20 |
ENTRETOISE (5,2X7X6,3) ORIGINE PIAGGIO COMMUN A LA GAMME -GU91180506 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
21 |
CAOUTCHOUC (7X15) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120405 Plus d'informationsQuantité requise : 6 |
