Eclatés de véhicule - MOTO GUZZI NORGE 1200 IE 1200 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

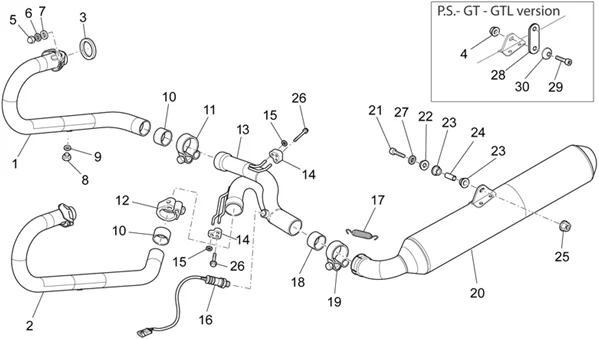

Chassis : 33.38 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/508/Norge_1200_IE_1200_2006-2008_33.38.PNG)
1 |
983076 - TUBO SCARICO DX ELETTROL NORGE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
983077 - TUBO SCARICO SX ELETTROL NORGE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/0/1/img/125501.jpg)
3 |
JOINT ECHAPPEMENT SORTIE CULASSE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU90718370 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
4 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152300 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/0/img/73550.jpg)
5 |
ECROU BRIDE (M8) ORIGINE PIAGGIO COMMUN A LA GAMME -GU92660021 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
6 |
RONDELLE (8,4X13X0,8) ORIGINE PIAGGIO COMMUN A LA GAMME -GU14615901 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/6/img/132666.jpg)
7 |
RONDELLE PLATE (8,4X14,57X1,6) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95005308 Plus d'informationsQuantité requise : 4 |
||||||
|
8 |
GU98110007 - BOUCHON Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/7/4/img/130574.jpg)
9 |
JOINT BOUCHON COUDE ECHAPPEMENT ORIGINE COMMUN A LA GAMME MOTO GUZZI -GU30109330 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/1/img/73431.jpg)
10 |
JOINT ECHAPPEMENT ORIGINE PIAGGIO APRILIA 750-900 SHIVER, DORSODURO/MOTO-GUZZI 850-1200 BREVA, NORGE, 940 BELLAGIO -GU05121630 Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
976522 - FASCETTA STRINGITUBO DX PER COMPENSATORE Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
976523 - FASCETTA STRINGITUBO SX PER COMPENSATORE Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
977664 - RACCORDO 2 IN 1 * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/4/img/73434.jpg)
14 |
SILENTBLOC ECHAPPEMENT ORIGINE PIAGGIO MOTO GUZZI 850-1200 NORGE, BREVA, 940 BELLAGIO, 1200 SPORT/APRILIA 1200 CAPONORD, 850 MANA -GU05124230 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/1/img/73541.jpg)
15 |
RONDELLE POUR ARBRE D8 ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU90274008 Plus d'informationsQuantité requise : 4 |
||||||
|
16 |
GU32727010 - SONDE LAMDA * Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
AP8121170 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/6/img/73436.jpg)
18 |
JOINT ECHAPPEMENT ORIGINE PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4, TUONO/MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO -GU05128230 Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
976521 - FASCETTA STRIGITUBO PER SILENZIATORE Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
97766515 - SILENZIATORE ESTERNO Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/6/1/img/133161.jpg)
21 |
VIS BTR (8X45) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98680445 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/8/img/71698.jpg)
22 |
DOUILLE/RONDELLE CREUSE FIXATION SILENCIEUX ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -AP8134378 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/5/img/71745.jpg)
23 |
CAOUTCHOUC DE POT ECHAPPEMENT ORIGINE APRILIA/MOTO GUZZI COMMUN A LA GAMME -AP8144071 Plus d'informationsQuantité requise : 2 |
||||||
|
24 |
883079 - DISTANZIALE 8,5X11,9X25,5 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/3/3/img/132533.jpg)
25 |
ECROU BRIDE (8X1.25) ORIGINE PIAGGIO COMMUN A LA GAMME -GU92650138 Plus d'informationsQuantité requise : 1 |
||||||
|
26 |
GU05124330 - VIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/9/img/132669.jpg)
27 |
RONDELLE 8,5X24X2 ORIGINE PIAGGIO COMMUN A LA GAMME MOTO GUZZI -GU95005312 Plus d'informationsQuantité requise : 1 |
||||||
|
28 |
977798 - PIASTRINA SUPPORTO MARMITTA * Plus d'informationsQuantité requise : 1 |
||||||
|
28 |
978086 - PIASTRINA SUPPORTO MARMITTA NORGE PA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/2/img/67332.jpg)
29 |
VIS BTR (8X25) ETRIER OU AMORTISSEUR ORIGINE PIAGGIO COMMUN A LA GAMME -597150 Plus d'informationsQuantité requise : 1 |
||||||
|
30 |
DOUILLE/RONDELLE CREUSE FIXATION SILENCIEUX ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -AP8134378 Plus d'informationsQuantité requise : 1 |
