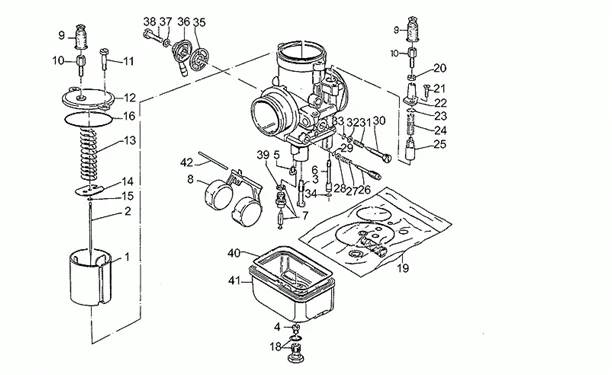

Moteur : 34.25 CARBURATEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/522/Targa_750_1990-1992_34.25.PNG)
1 |
GU23934870 - BOISSEAU DE GAZ More informationQuantity required : 2 |
||||||
|
3 |
GU31935515 - PULVERISATEUR More informationQuantity required : 2 |
||||||
|
5 |
GU27935960 - GICLEUR DE RALENTI More informationQuantity required : 2 |
||||||
|
6 |
GU19936000 - JET DEMARRAGE 60 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/7/4/2/img/129742.jpg)
7 |
GU19934600 - VANNE POINTEAU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/9/img/71249.jpg)
8 |
CARB FLOAT BOWL - GR.9,5 "PIAGGIO GENUINE PART" APRILIA 125 RS 1999>2010/MOTO-GUZZI V35, V50, V65, V75, TARGA, STRADA, NEVADA -AP8106782- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/5/5/img/129155.jpg)
10 |
GU12937200 - VIS TENDEUR DE FIL More informationQuantity required : 4 |
||||||
|
11 |
GU14934650 - VIS More informationQuantity required : 2 |
||||||
|
12 |
GU19935080 - COUVERCLE More informationQuantity required : 2 |
||||||
|
13 |
GU19937180 - RESSORT RAPPEL SOUP.GAZ More informationQuantity required : 2 |
||||||
|
14 |
GU19938580 - PLAQUETTE D ARRET More informationQuantity required : 2 |
||||||
|
15 |
GU65933600 - SUPPORT More informationQuantity required : 2 |
||||||
|
18 |
GU27933720 - PORTE GICLEUR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/5/3/img/71253.jpg)
19 |
GASKET KIT FOR CARB "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, STRADA, TARGA, V35, V50, V65, V75, -AP8106801- More informationQuantity required : 1 |
||||||
|
20 |
GU19938880 - ECROU More informationQuantity required : 4 |
||||||
|
21 |
GU13937900 - VIS More informationQuantity required : 2 |
||||||
|
22 |
GU17937450 - COUVERCLE SOUPAPE More informationQuantity required : 2 |
||||||
|
24 |
GU39937600 - RESSORT More informationQuantity required : 2 |
||||||
|
25 |
GU13937800 - SOUPAPE DE DEMARRAGE More informationQuantity required : 2 |
||||||
|
27 |
GU13936300 - RESSORT More informationQuantity required : 2 |
||||||
|
28 |
GU65933700 - RONDELLE PLATE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/1/img/65751.jpg)
31 |
152608 - VIS More informationQuantity required : 2 |
||||||
|
32 |
GU14931650 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/0/9/img/131909.JPG)
35 |
GU43934000 - FILTRE ESSENCE More informationQuantity required : 2 |
||||||
|
36 |
AP8106794 - PIPETTE RACC. TUYAU ESSENCE More informationQuantity required : 2 |
||||||
|
41 |
GU19934480 - CUVE ALUMINIUM More informationQuantity required : 2 |
||||||
|
41 |
GU31934460 - CUVE PLASTICA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/8/img/129168.jpg)
42 |
GU13933100 - AXE DE FLOTTEUR More informationQuantity required : 2 |
