Vehicle Exploded View - MOTO-GUZZI TARGA 750 1990-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

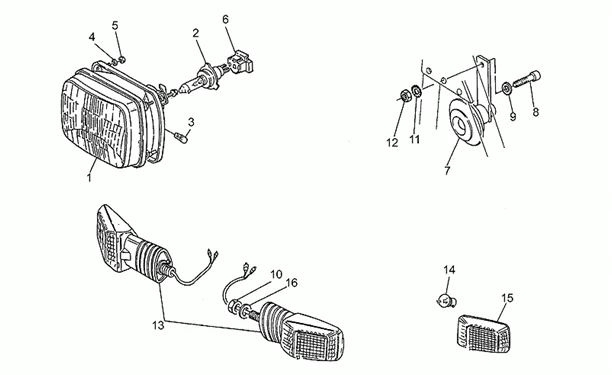

Chassis : 33.06 PHARE AVANT-KLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/522/Targa_750_1990-1992_33.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
2 |
LIGHT BULB 12V-60/55W H4 "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER AND MOTORCYCLE RANGE -292723- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/9/img/65759.jpg)
3 |
LIGHT BULB 12V 4W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -163015- More informationQuantity required : 1 |
||||||
4 |
GU95021105 - RONDELLE EVENT. More informationQuantity required : 3 |
||||||
|
5 |
GU92602205 - ECROU More informationQuantity required : 4 |
||||||
|
6 |
GU14756255 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
7 |
GU61743700 - AVERTISSEUR ACOUST More informationQuantity required : 1 |
||||||
|
8 |
GU98822416 - VIS More informationQuantity required : 1 |
||||||
|
9 |
GU95004208 - RONDELLE More informationQuantity required : 1 |
||||||
|
10 |
GU92602410 - ECROU More informationQuantity required : 2 |
||||||
|
11 |
GU95021108 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
12 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 1 |
||||||
|
14 |
GU93450127 - LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
|
15 |
GU23753710 - VITRE CLIGNOTANT More informationQuantity required : 2 |
||||||
|
16 |
GU95022110 - RONDELLE EVENT. More informationQuantity required : 2 |
