Vehicle Exploded View - MOTO-GUZZI TARGA 750 1990-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

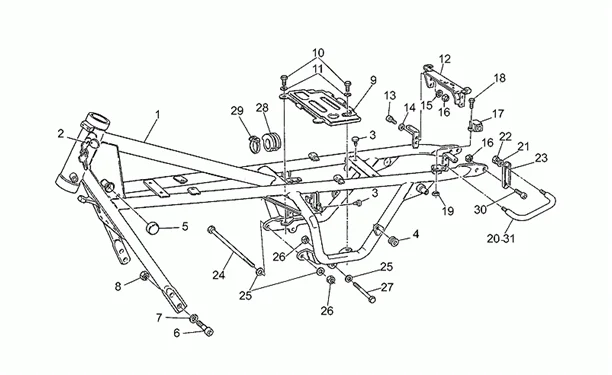

Chassis : 33.21 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/522/Targa_750_1990-1992_33.21.PNG)
2 |
GU19782520 - SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/8/0/img/129680.jpg)
3 |
GU19705900 - TAMPON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/8/6/img/131886.jpg)
5 |
FRAME PAD "PIAGGIO GENUINE PARTS" COMMON FOR MOTO-GUZZI RANGE -GU39103400- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/4/2/img/133142.jpg)
6 |
GU98622525 - VIS 25 MM More informationQuantity required : 4 |
||||||
|
7 |
GU95120105 - RONDELLE ELASTIQUE More informationQuantity required : 4 |
||||||
|
8 |
GU92602210 - ECROU More informationQuantity required : 4 |
||||||
|
10 |
031117 - BOULON S03111700 More informationQuantity required : 4 |
||||||
|
11 |
GU95004208 - RONDELLE More informationQuantity required : 4 |
||||||
|
13 |
GU98622416 - VIS More informationQuantity required : 2 |
||||||
|
14 |
GU95000208 - RONDELLE More informationQuantity required : 2 |
||||||
|
15 |
GU95021108 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
|
16 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 2 |
||||||
|
17 |
GU27468720 - SERRURE AVEC CLES More informationQuantity required : 1 |
||||||
|
18 |
GU98290511 - VIS More informationQuantity required : 2 |
||||||
|
19 |
GU92602205 - ECROU More informationQuantity required : 2 |
||||||
|
21 |
GU95021108 - RONDELLE ELASTIQUE More informationQuantity required : 4 |
||||||
|
22 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 4 |
||||||
|
24 |
GU98110199 - PIVOT M10X205 More informationQuantity required : 1 |
||||||
|
25 |
GU95004210 - RONDELLE 10,2X18X2 More informationQuantity required : 4 |
||||||
|
26 |
GU92602210 - ECROU More informationQuantity required : 3 |
||||||
|
27 |
GU98052555 - VIS More informationQuantity required : 2 |
||||||
|
28 |
GU14107100 - TAMPON More informationQuantity required : 1 |
||||||
|
29 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 1 |
