Vehicle Exploded View - MOTO-GUZZI TARGA 750 1990-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

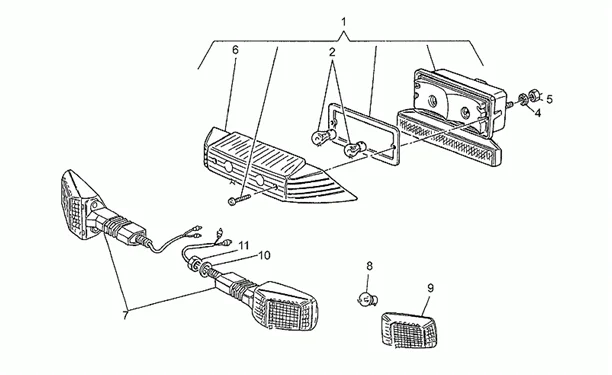

Chassis : 33.07 FEU ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/522/Targa_750_1990-1992_33.07.PNG)
2 |
GU93450224 - LAMPE (OU AMPOULE) 12V/5-21W More informationQuantity required : 2 |
||||||
|
5 |
GU92602206 - ECROU More informationQuantity required : 2 |
||||||
|
8 |
GU93450127 - LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
|
9 |
GU23753710 - VITRE CLIGNOTANT More informationQuantity required : 2 |
||||||
|
10 |
GU95022110 - RONDELLE EVENT. More informationQuantity required : 2 |
||||||
|
11 |
GU92602512 - ECROU BAS M12X1,25 More informationQuantity required : 2 |
