Vehicle Exploded View - MOTO-GUZZI TARGA 750 1990-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

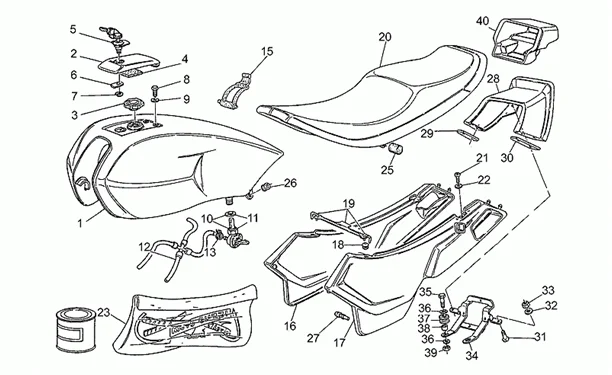

Chassis : 33.03 CARROSSERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/522/Targa_750_1990-1992_33.03.PNG)
3 |
GU28103946 - BOUCHON RESERVOIR More informationQuantity required : 1 |
||||||
|
4 |
GU19104336 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
6 |
GU18105001 - LOQUETEAU More informationQuantity required : 1 |
||||||
|
7 |
GU19104950 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/4/7/img/132747.JPG)
9 |
GU95129100 - RONDELLE ELASTIQUE 5,3X10X0,5 More informationQuantity required : 2 |
||||||
|
10 |
GU65105400 - ROBINET ESS.D. More informationQuantity required : 1 |
||||||
|
11 |
GU65105401 - ROBINET ESS.G. More informationQuantity required : 1 |
||||||
|
15 |
GU19102750 - TIRANT More informationQuantity required : 1 |
||||||
|
17 |
GU275704861 - COUVERCLE BATTERIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
22 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 2 |
||||||
|
26 |
GU91551062 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
31 |
GU98250618 - VIS More informationQuantity required : 3 |
||||||
|
32 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 3 |
||||||
|
33 |
GU92602206 - ECROU More informationQuantity required : 3 |
||||||
|
35 |
GU98054320 - VIS M6X20 More informationQuantity required : 2 |
||||||
|
36 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
37 |
GU91551086 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
38 |
GU91180607 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
39 |
GU92630106 - ECROU M6X1 More informationQuantity required : 2 |
