Vehicle Exploded View - MOTO-GUZZI TARGA 750 1990-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

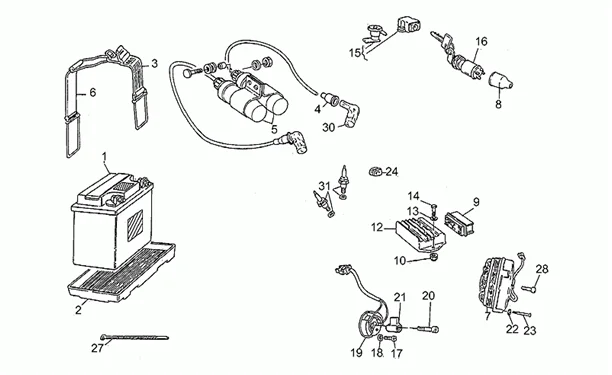

Chassis : 33.01 BATTERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/522/Targa_750_1990-1992_33.01.PNG)
2 |
GU28707050 - BOITIER BATTERIE More informationQuantity required : 1 |
||||||
|
3 |
GU27704820 - ETRIER COLLIER BATT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
4 |
GU14717600 - CAPUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/2/5/5/img/131255.jpg)
5 |
IGNITION COIL - HIGH TENSION "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, STRADA, TARGA, V35, V50, V65, V75, -GU31716560- More informationQuantity required : 2 |
||||||
|
8 |
GU19741336 - CAPUCHON More informationQuantity required : 1 |
||||||
|
9 |
GU28712500 - CONNECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/0/0/img/132500.JPG)
10 |
GU92630105 - ECROU More informationQuantity required : 2 |
||||||
|
13 |
GU95000205 - RONDELLE More informationQuantity required : 4 |
||||||
|
14 |
GU98622216 - VIS More informationQuantity required : 2 |
||||||
|
16 |
GU31735360 - BLOC DEMARREUR More informationQuantity required : 1 |
||||||
|
18 |
GU95000205 - RONDELLE More informationQuantity required : 2 |
||||||
|
19 |
GU29722270 - CAPTEUR PHASE/TOURS More informationQuantity required : 1 |
||||||
|
20 |
GU98622318 - VIS M6X18 More informationQuantity required : 1 |
||||||
|
22 |
GU95021105 - RONDELLE EVENT. More informationQuantity required : 3 |
||||||
|
24 |
GU19007700 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
27 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 20 |
||||||
|
28 |
GU28712459 - VIS More informationQuantity required : 1 |
||||||
|
30 |
GU14717400 - PIPE BOUGIE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/7/img/69457.jpg)
31 |
SPARK PLUG NGK B8ES "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR, MOTO-GUZZI V65, NEVADA, STRADA -847085- More informationQuantity required : 2 |
