Vehicle Exploded View - MOTO-GUZZI TARGA 750 1990-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

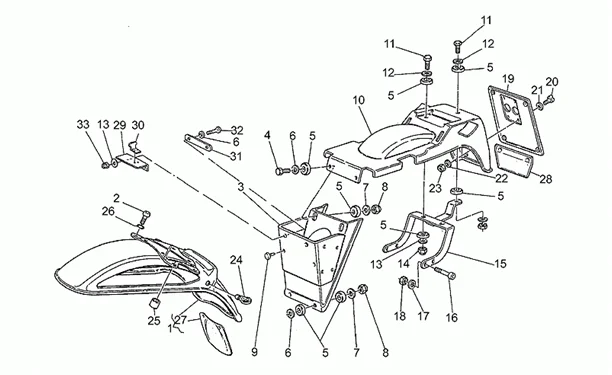

Chassis : 33.13 GARDE-BOUE AV-AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/522/Targa_750_1990-1992_33.13.PNG)
2 |
GU98230840 - VIS More informationQuantity required : 4 |
||||||
|
4 |
GU98054320 - VIS M6X20 More informationQuantity required : 2 |
||||||
|
5 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 10 |
||||||
|
6 |
GU95000206 - RONDELLE More informationQuantity required : 6 |
||||||
|
7 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 4 |
||||||
|
8 |
GU92630106 - ECROU M6X1 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/8/0/img/129680.jpg)
9 |
GU19705900 - TAMPON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/7/img/132927.jpg)
11 |
GU98084314 - VIS M6X14 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
12 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 2 |
||||||
|
13 |
GU95100118 - RONDELLE 6,2X18X1 More informationQuantity required : 4 |
||||||
|
14 |
GU92630106 - ECROU M6X1 More informationQuantity required : 2 |
||||||
|
16 |
031117 - BOULON S03111700 More informationQuantity required : 4 |
||||||
|
17 |
GU95004208 - RONDELLE More informationQuantity required : 4 |
||||||
|
18 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 4 |
||||||
|
20 |
GU98200410 - VIS More informationQuantity required : 4 |
||||||
|
21 |
GU95000204 - RONDELLE More informationQuantity required : 4 |
||||||
|
22 |
GU95129080 - RONDELLE More informationQuantity required : 4 |
||||||
|
23 |
GU92630104 - ECROU M4X0,7 More informationQuantity required : 4 |
||||||
|
24 |
GU28659740 - OEILLET More informationQuantity required : 2 |
||||||
|
26 |
GU90706092 - JOINT TORIQUE More informationQuantity required : 8 |
||||||
|
27 |
GU27436920 - PARE BOUE AR. More informationQuantity required : 1 |
||||||
|
29 |
GU23438510 - PLAQUE More informationQuantity required : 2 |
||||||
|
30 |
GU23439010 - SUPPORT More informationQuantity required : 1 |
||||||
|
32 |
GU98054312 - VIS More informationQuantity required : 2 |
||||||
|
33 |
GU92602206 - ECROU More informationQuantity required : 2 |
