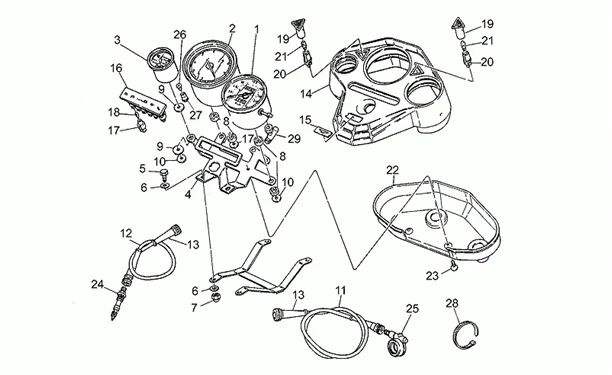

Chassis : 33.05 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/522/Targa_750_1990-1992_33.05.PNG)
1 |
|
||||||
|
1 |
GU28762451 - COMPTEUR KILOMETRIQUE MHP More informationQuantity required : 1 |
||||||
|
2 |
|
||||||
|
3 |
|
||||||
|
4 |
GU28764050 - PLAQUE More informationQuantity required : 1 |
||||||
|
5 |
|
||||||
|
6 |
GU95000208 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/1/img/132561.jpg)
7 |
GU92781081 - ECROU More informationQuantity required : 2 |
||||||
|
8 |
RONDELLE DE CALAGE |
||||||
|
9 |
GU17783960 - RONDELLE DE CALAGE More informationQuantity required : 5 |
||||||
|
10 |
|
||||||
|
11 |
GU63760420 - CABLE D ENTRAIN.CKM More informationQuantity required : 1 |
||||||
|
12 |
GU28768150 - TRANSMISSION COMPTE-TOURS More informationQuantity required : 1 |
||||||
|
13 |
GU17762200 - GAINE More informationQuantity required : 2 |
||||||
|
14 |
|
||||||
|
15 |
"Décalco ""Aquila""" |
||||||
|
16 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/7/0/5/img/129705.jpg)
17 |
BULB HOLDER - DASHBOARD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU19768680- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
18 |
LIGHT BULB - INDICATOR LIGHT 12V-1/2W "PIAGGIO GENUINE PART" BEVERLY, X7, LIBERTY, ZIP, VESPA GTS/MOTO-GUZZI -164634- More informationQuantity required : 6 |
||||||
|
19 |
|
||||||
|
20 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
21 |
294131 - AMPOULE 12V 3W More informationQuantity required : 3 |
||||||
|
22 |
|
||||||
|
23 |
|
||||||
|
24 |
GU14769200 - RENVOI Z=14 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/3/2/1/img/131321.jpg)
25 |
SPEEDOMETER SOCKET "PIAGGIO GENUINE PART" MOTO-GUZZI 750 STRADA, TARGA, SP, V35, V50, V65, V75 -GU31762562- More informationQuantity required : 1 |
||||||
|
26 |
294131 - AMPOULE 12V 3W More informationQuantity required : 3 |
||||||
|
27 |
|
||||||
|
28 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 2 |
||||||
|
29 |
GU17768360 - RENVOI 90° More informationQuantity required : 1 |
