Vehicle Exploded View - MOTO-GUZZI TARGA 750 1990-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

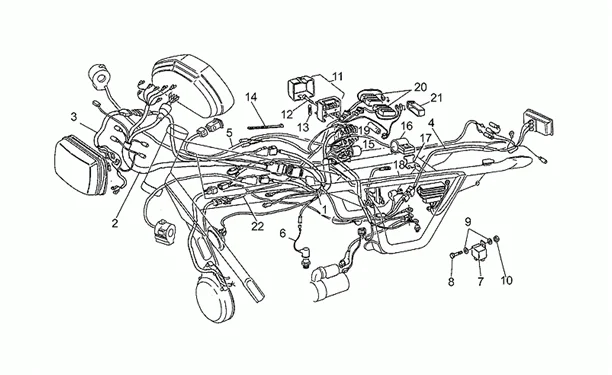

Chassis : 33.11 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/522/Targa_750_1990-1992_33.11.PNG)
3 |
GU19747435 - FAISCEAU PRINCIPAL More informationQuantity required : 1 |
||||||
|
7 |
GU19732500 - RELAIS DEMARRAGE More informationQuantity required : 1 |
||||||
|
8 |
GU98054212 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.JPG)
9 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 4 |
||||||
|
10 |
GU92602205 - ECROU More informationQuantity required : 2 |
||||||
|
13 |
GU17742550 - FUSIBLE 16A More informationQuantity required : 6 |
||||||
|
14 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/9/img/73449.jpg)
15 |
FLASHER UNIT (FOR 21W BULB) "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU17750520- More informationQuantity required : 1 |
||||||
|
16 |
GU17751200 - BLOC More informationQuantity required : 1 |
||||||
|
17 |
GU19750435 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
19 |
GU27710435 - CONDENSATEUR More informationQuantity required : 1 |
||||||
|
20 |
GU23721494 - CENTRALE ELECTRONIQUE More informationQuantity required : 2 |
||||||
|
21 |
GU27723835 - SUPPORT SIRENE More informationQuantity required : 2 |
||||||
|
22 |
GU31722140 - CABLES More informationQuantity required : 1 |
